SF166C, SF161C - SUPER FAST GLASS PASSIVATED RECTIFIER

MIC

Datasheet Details

Part number	SF166C, SF161C
Manufacturer	MIC
File Size	73.30 KB
Description	SUPER FAST GLASS PASSIVATED RECTIFIER

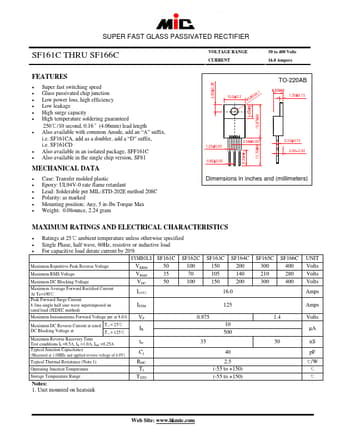

Datasheet	SF161C-MIC.pdf
Note	This datasheet PDF includes multiple part numbers: SF166C, SF161C. Please refer to the document for exact specifications by model.

Super fast switching speed.
Glass passivated chip junction.
Low power loss, high efficiency.
Low leakage.
High surge capacity.
High temperature soldering guaranteed 250℃/10 second, 0.16″(4.06mm) lead length.
Also available with common Anode, add an “A” suffix, i. e. SF161CA, add as a doubler, add a “D” suffix, i. e. SF161CD.
Also available in an isolated package, SFF161C.
Also available in the single chip version, SF.
