SF56, SF51 SUPER FAST RECOVERY RECTIFIER

SF56 Description

SUPER FAST RECOVERY RECTIFIER SF51 THRU SF58 VOLTAGE RANGE CURRENT 50 to 600 Volts 5.0Ampere .

SF56 Features

* Low coat construction
* Fast switching for high efficency.
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA
* Case: T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SF56, SF51. Please refer to the document for exact specifications by model.

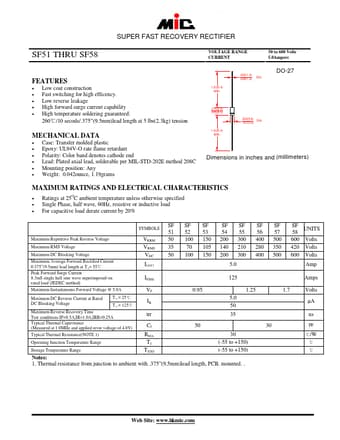

datasheet Preview Page 2

Datasheet Details

Part number
SF56, SF51
Manufacturer
MIC
File Size
70.68 KB
Datasheet
SF51-MIC.pdf
Description
SUPER FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SF56, SF51.
Please refer to the document for exact specifications by model.
