SM10, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SM6.8 THRU SM200CA Breakdown Voltage Peak Pulse Power 6.8 to 200 Volts 400 Watts .

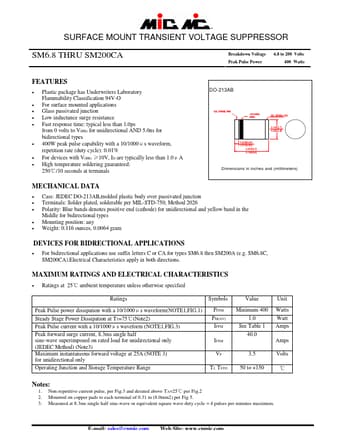

datasheet Preview Page 1 from Datasheet4u.com

SM10-MIC.pdf

SM10 Datasheet Preview — Preview of SM10 PDF

Datasheet Details

Part number:

SM10

Manufacturer:

MIC

File Size:

56.33 KB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Glass passivated junction
* Low inductance surge resistance
* Fast response time: typical less than 1.0ps from 0 volts to V(BR) for unidirectional AND 5.0ns for bidirectional types
* 400W peak pulse capability with a 10/1000μs waveform, repetition rate (duty cycle):
