SMA40, SMA5.0 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

SMA40 Description

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMA5.0 THRU SMA170CA Stand-off Voltage Peak Pulse Power 5.0 to 170 Volts 300 Watts .

SMA40 Applications

* in order to optimize board space
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Excellent clamping capability
* Repetition Rate (duty cycle): 0.01%
* Fast response time: typical less than 1.0ps fro

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMA40, SMA5.0. Please refer to the document for exact specifications by model.

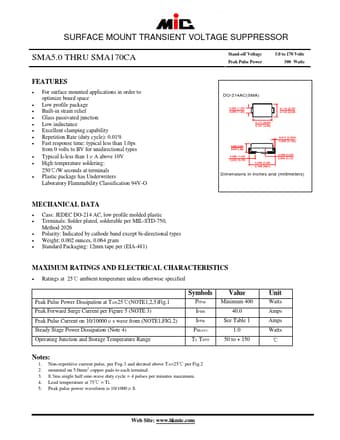

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMA40, SMA5.0
Manufacturer
MIC
File Size
101.16 KB
Datasheet
SMA5.0-MIC.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: SMA40, SMA5.0.
Please refer to the document for exact specifications by model.
