SMC40 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS

Download the SMC40 datasheet PDF (SMC5.0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for glass passivated junction transient voltage suppressors.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMC5.0-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMC40
Manufacturer MIC
File Size 118.46 KB
Description GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
Datasheet download datasheet SMC40 Datasheet

📁 Similar Datasheet

  • SMC400 - Rolling code decoder (Systron Microelectronics)
  • SMC400 - Rolling code decoder (Belling-Systron Microelectronics)
  • SMC401 - Intelligent lithium battery charging controller (SHANGHAI BELLING)
  • SMC401LE - LED Display (American Opto Plus LED)
  • SMC401LR - LED Display (American Opto Plus LED)
  • SMC401LY - LED Display (American Opto Plus LED)
  • SMC401W - LED Display (American Opto Plus LED)
  • SMC403LR - LED Display (American Opto Plus LED)
  • SMC404LR - LED Display (American Opto Plus LED)
  • SMC404LY - LED Display (American Opto Plus LED)
Other Datasheets by MIC
  • SMC40A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
  • SMC43 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
  • SMC43A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
  • SMC45 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
  • SMC45A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
  • SMC48 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
  • SMC48A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS
  • SMC10 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS

Full PDF Text Transcription

Click to expand full text

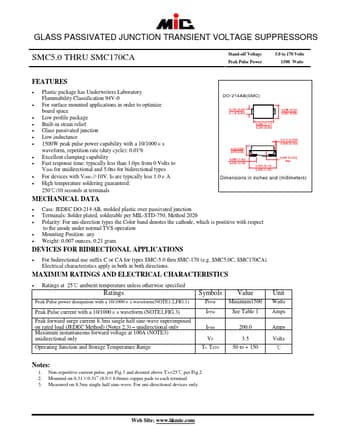

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS SMC5.0 THRU SMC170CA Stand-off Voltage Peak Pulse Power 5.0 to 170 Volts 1500 Watts FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 • For surface mounted applications in order to optimize board space • Low profile package • Built-in strain relief • Glass passivated junction • Low inductance • 1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01% • Excellent clamping capability • Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for unidirectional and 5.0ns for bidirectional types • For devices with V(BR)≥10V, ID are typically less 1.
