SR504 - SCHOTTKY BARRIER RECTIFIER

Download the SR504 datasheet PDF (SR502 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for schottky barrier rectifier.

Features

  • Fast switching speed.
  • Low forward voltage.
  • Low power high efficiency.
  • High surge capability.
  • High temperature soldering guaranteed 250℃/10 seconds,0.373”(9.5mm)lead length.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SR502-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SR504
Manufacturer MIC
File Size 73.06 KB
Description SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SR504 Datasheet

📁 Similar Datasheet

  • SR504 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Power Silicon)
  • SR504 - 5A SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • SR504 - Schottky Barrier Rectifiers (JGD)
  • SR504 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SR504 - HIGH CURRENT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • SR504 - 5 Amp Schottky Barrier Rectifier (Micro Commercial Components)
  • SR504 - SCHOTTKY BARRIER RECTIFIERS (Mospec Semiconductor)
  • SR504 - (SR502 - SR515) Schottky Barrier Rectifiers (Taiwan Semiconductor)
  • SR504-G - Schottky Barrier Rectifier (Comchip Technology)
  • SR5040 - SCHOTTKY BARRIER RECTIFIER (Dc Components)
Other Datasheets by MIC
  • SR502 - SCHOTTKY BARRIER RECTIFIER
  • SR503 - SCHOTTKY BARRIER RECTIFIER
  • SR505 - SCHOTTKY BARRIER RECTIFIER
  • SR506 - SCHOTTKY BARRIER RECTIFIER
  • SR508 - SCHOTTKY BARRIER RECTIFIER
  • SR510 - SCHOTTKY BARRIER RECTIFIER
  • SR5150 - SCHOTTKY BARRIER RECTIFIER
  • SR520 - SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text

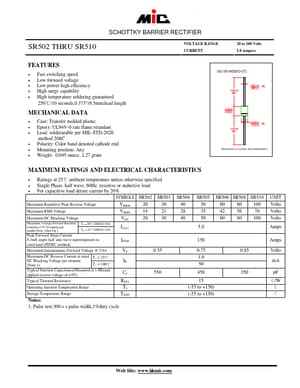

SR502 THRU SR510 SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE CURRENT 20 to 100 Volts 5.0 Ampere FEATURES • Fast switching speed • Low forward voltage • Low power high efficiency • High surge capability • High temperature soldering guaranteed 250℃/10 seconds,0.373”(9.5mm)lead length MECHANICAL DATA • Case: Transfer molded plastic • Epoxy: UL94V-0 rate flame retardant • Lead: solderarable per MIL-STD-202E method 208C • Polarity: Color band denoted cathode end • Mounting position: Any • Weight: 0.045 ounce, 1.
