W04M SINGLE-PHASE BRIDGE RECTIFIER

W04M Description

MASTER INSTRUMENT CORPORATION SINGLE-PHASE BRIDGE RECTIFIER W005M THRU W10M VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Amperes .

W04M Features

* l Low cost l This series is UL recognized under component index,file number E127707 l High forward surge current capability l Ideal for printed circuit board l High temperature soldering guaranteed: 260 oC/10 second, 0.375”(9.5mm) lead length at 5 lbs. (2.3kg) tension. MECHANICAL DATA l Case: Molded

📥 Download Datasheet

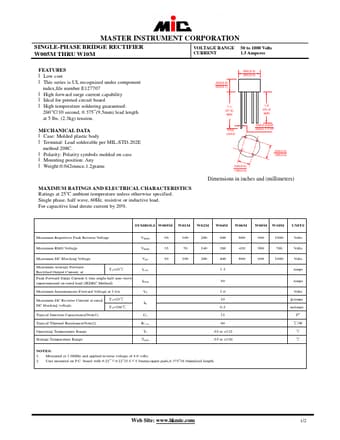

Preview of W04M PDF
datasheet Preview Page 2

Datasheet Details

Part number
W04M
Manufacturer
MIC
File Size
103.29 KB
Datasheet
W04M-MIC.pdf
Description
SINGLE-PHASE BRIDGE RECTIFIER
