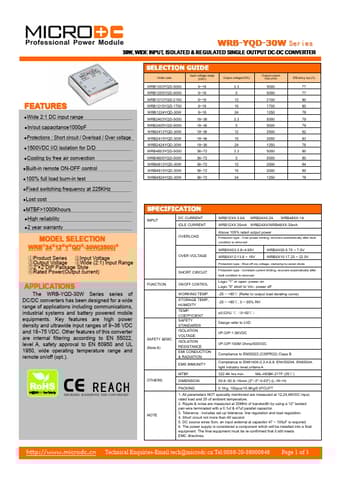

WRB2424YQD, WRB1203YQD Datasheet - MICRODC

WRB2424YQD ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

WRB2424YQD Features

* Wide 2:1 DC input range

* In/out capacitance1000pF

* Protections : Short circuit / Overload / Over voltage

* 1500VDC I/O isolation for D/D

* Cooling by free air convection

* Built-in remote ON-OFF control

* 100% full load burn-in test

* Fixed switching frequency at 225KHz

Datasheet Details

WRB2424YQD, WRB1203YQD

MICRODC

535.69 KB

Isolated & regulated single output dc-dc converter.

This datasheet PDF includes multiple part numbers: WRB2424YQD, WRB1203YQD. Please refer to the document for exact specifications by model.
