WRB4815YQD, WRB1203YQD, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

WRB-YQD-30W Series 30W, WIDE INPUT, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER .

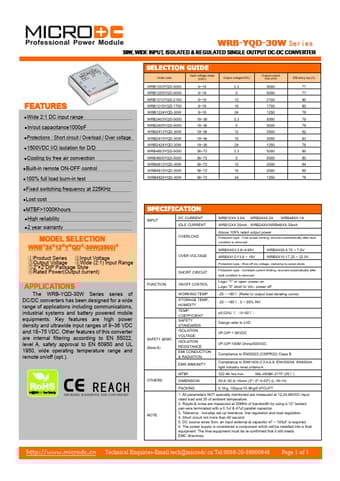

datasheet Preview Page 1 from Datasheet4u.com

WRB1203YQD-MICRODC.pdf

WRB4815YQD Datasheet Preview — This datasheet PDF includes multiple part numbers: WRB4815YQD, WRB1203YQD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

WRB4815YQD, WRB1203YQD

Manufacturer:

MICRODC

File Size:

535.69 KB

Description:

ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: WRB4815YQD, WRB1203YQD.
Please refer to the document for exact specifications by model.

Features

* Wide 2:1 DC input range
* In/out capacitance1000pF
* Protections : Short circuit / Overload / Over voltage
* 1500VDC I/O isolation for D/D
* Cooling by free air convection
* Built-in remote ON-OFF control
* 100% full load burn-in test
* Fixed switching frequency at 225KHz
