MD7136H - (MD71XXH Series) High Input(30V) CMOS Voltage Regulator

of Operation 1.Basic Operation Figure 8 shows the block diagram of the MD71XXH series.The error amplifier compares a reference voltage Vref with a part of the output voltage divided by the feedback resistors Rs and Rf, and supplies the gate voltage to the output transistor, necessary to ensure certa

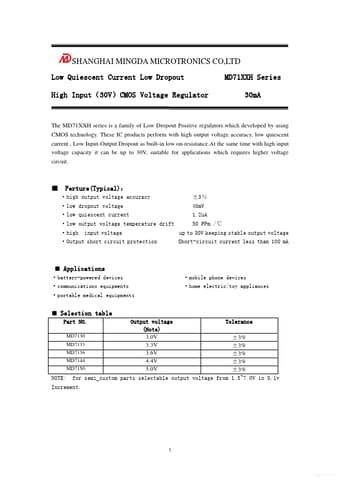

SHANGHAI MINGDA MICROTRONICS CO,LTD Low Quiescent Current Low Dropout High Input（30V）CMOS Voltage Regulator MD71XXH Series 30mA The MD71XXH series is a family of Low Dropout Positive regulators.which developed by using CMOS technology.

These IC products perform with high output voltage accuracy, low quiescent current , Low Input-Output Dropout as built-in low on-resistance.At the same time with high input voltage capacity it can be up to 30V, suitable for applications which requires higher volt
