Part number:
MD7601C12
Manufacturer:
MINGDA MICROTRONICS
File Size:
1.20 MB
Description:
Cmos voltage regulator.
Datasheet Details

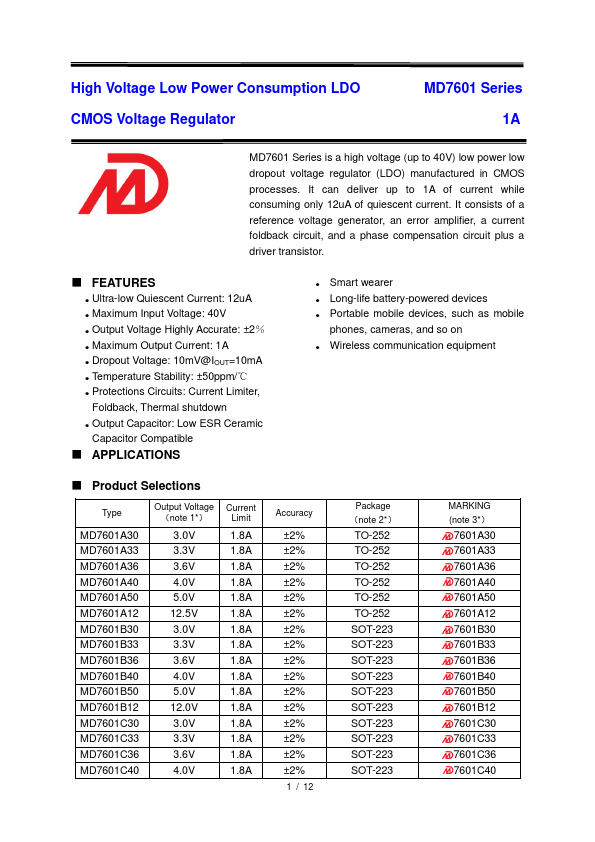

MD7601C12 Features
* Ultra-low Quiescent Current: 12uA
* Maximum Input Voltage: 40V
* Output Voltage Highly Accurate: ±2％
* Maximum Output Current: 1A
* Dropout Voltage: 10mV@IOUT=10mA
* Temperature Stability: ±50ppm/℃
* Protections Circuits: Current Limiter, Foldback, Thermal shutdown
Datasheet Details
MD7601C12
MINGDA MICROTRONICS
1.20 MB
Cmos voltage regulator.
