MD7612 - CMOS Voltage Regulator

MINGDA MICROTRONICS

📥 Download Datasheet

MD7612 Datasheet Preview — Preview of MD7612 PDF

Datasheet Details

Part number	MD7612
Manufacturer	MINGDA MICROTRONICS
File Size	1.17 MB
Description	CMOS Voltage Regulator
Datasheet	MD7612-MINGDAMICROTRONICS.pdf

MD7612 Product details

Description

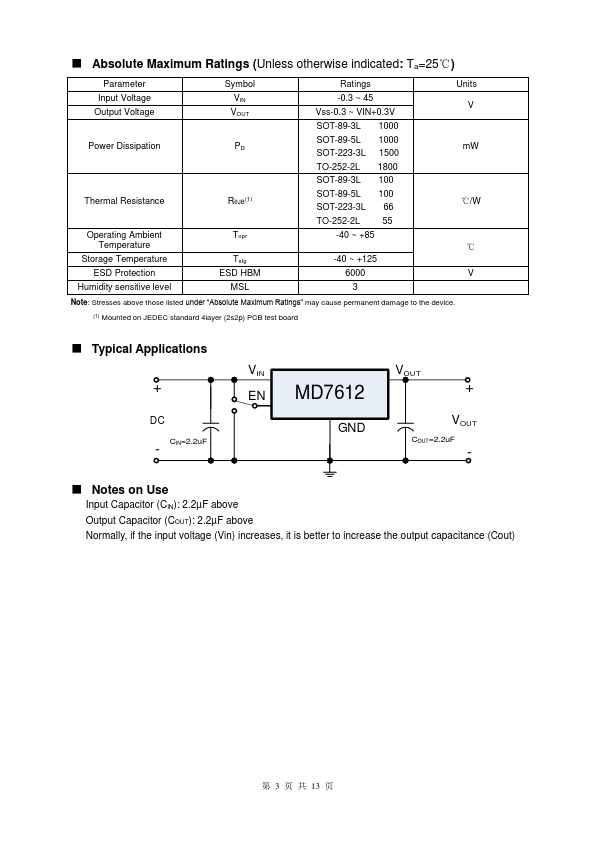

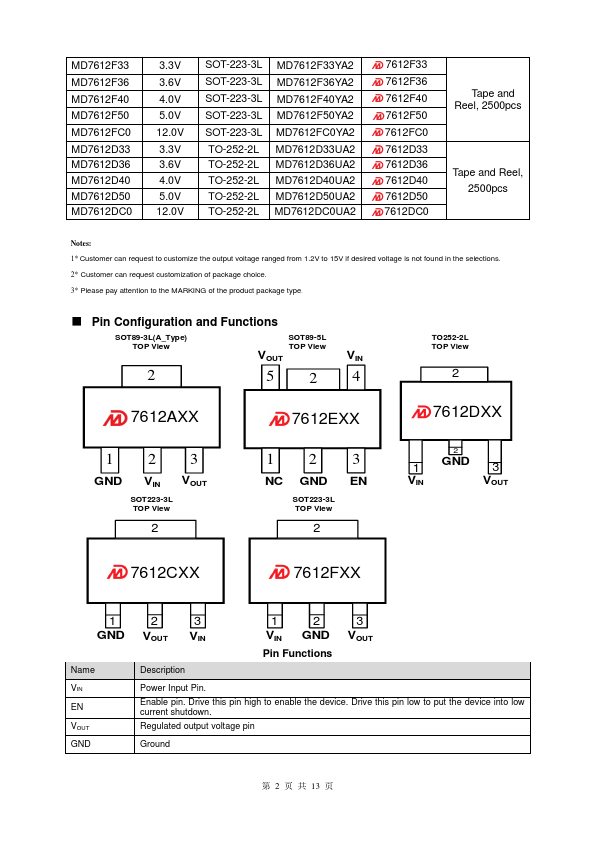

Power Input Pin. Absolute Maximum Ratings (Unless otherwise indicated: Ta=25℃) Parameter Input Voltage Output Voltage Power Dissipation Thermal Resistance Operating Ambient Temperature Storage Temperature ESD Protection Symbol VIN VOUT PD RθJB(1) Topr Tstg ESD HBM Ratings -0.3 ~ 45 Vss-0.3 ~ VIN+0.3V SOT-89-3L 1000 SOT-89-

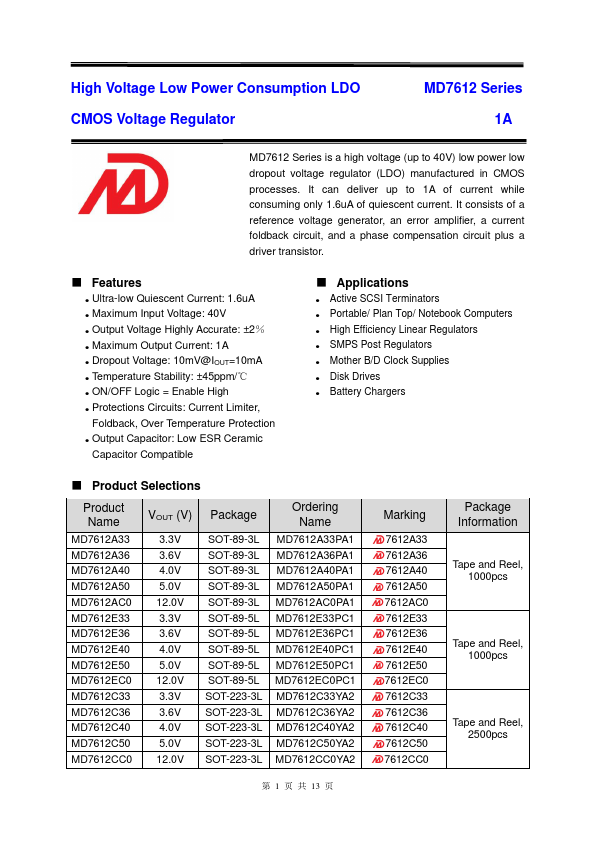

Features

s.
Ultra-low Quiescent Current: 1.6uA.
Maximum Input Voltage: 40V.
Output Voltage Highly Accurate: ±2％.
Maximum Output Current: 1A.
Dropout Voltage: 10mV@IOUT=10mA.
Temperature Stability: ±45ppm/℃.
ON/OFF Logic = Enable High.
Protections Circuits: Current Limiter, Foldback, Over Temperature Protection.
Output Capacitor: Low ESR Ceramic Capacitor Compatible.
