MD7612DC0, MD7612 - CMOS Voltage Regulator

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MD7612DC0, MD7612. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MD7612DC0, MD7612
Manufacturer MINGDA MICROTRONICS
File Size 1.17 MB
Description CMOS Voltage Regulator
Datasheet download datasheet MD7612-MINGDAMICROTRONICS.pdf
Note This datasheet PDF includes multiple part numbers: MD7612DC0, MD7612.
Please refer to the document for exact specifications by model.

MD7612DC0 Product details

Description

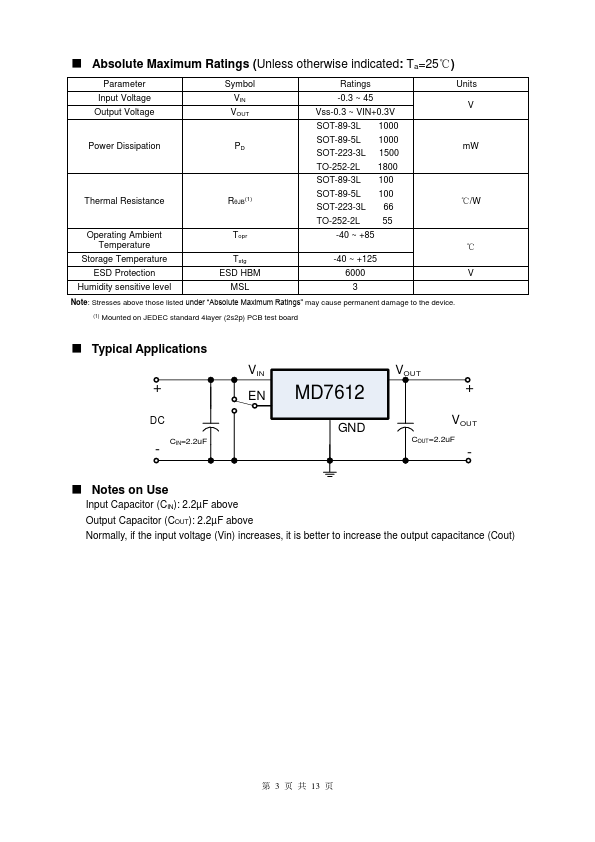

Power Input Pin. Absolute Maximum Ratings (Unless otherwise indicated: Ta=25℃) Parameter Input Voltage Output Voltage Power Dissipation Thermal Resistance Operating Ambient Temperature Storage Temperature ESD Protection Symbol VIN VOUT PD RθJB(1) Topr Tstg ESD HBM Ratings -0.3 ~ 45 Vss-0.3 ~ VIN+0.3V SOT-89-3L 1000 SOT-89-

Features
