MD7612E50, MD7612 Datasheet - MINGDA MICROTRONICS

MD7612E50 CMOS Voltage Regulator

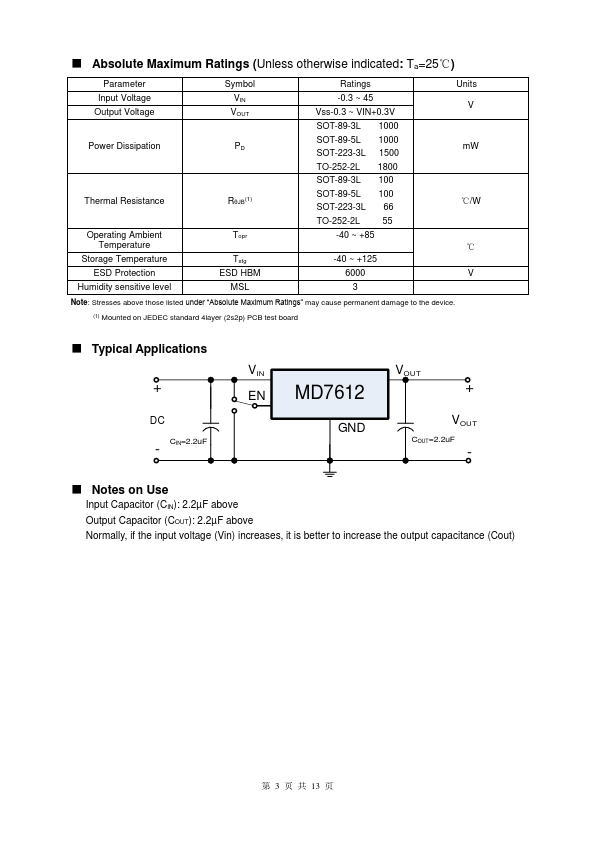

Power Input Pin. Enable pin. Drive this pin high to enable the device. Drive this pin low to put the device into low current shutdown. Regulated output voltage pin Ground 2 13 * Absolute Maximum Ratings (Unless otherwise indicated: Ta=25℃) Parameter Input Voltage Output Voltage Power Di.

MD7612E50 Features

* Ultra-low Quiescent Current: 1.6uA

* Maximum Input Voltage: 40V

* Output Voltage Highly Accurate: ±2％

* Maximum Output Current: 1A

* Dropout Voltage: 10mV@IOUT=10mA

* Temperature Stability: ±45ppm/℃

* ON/OFF Logic = Enable High

* Protections Circuits: Current Limite

MD7612-MINGDAMICROTRONICS.pdf

This datasheet PDF includes multiple part numbers: MD7612E50, MD7612. Please refer to the document for exact specifications by model.

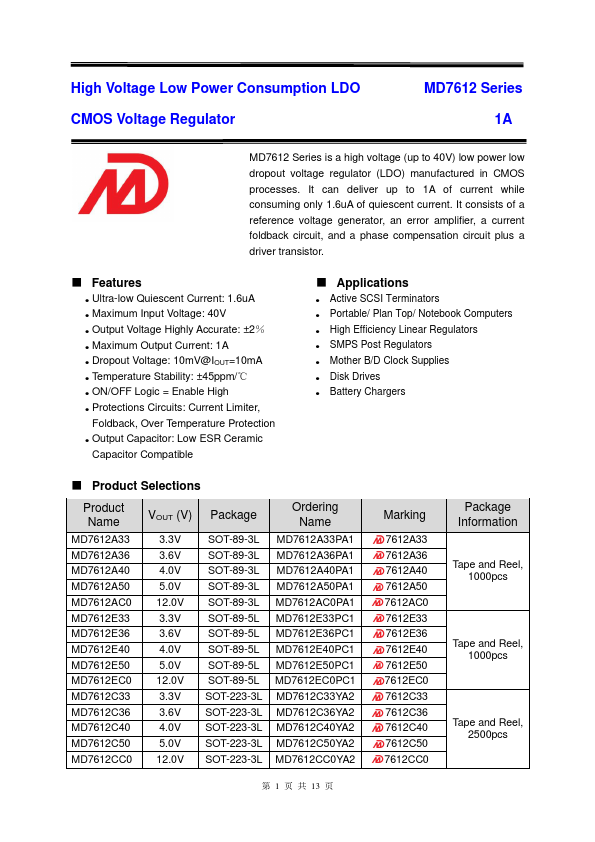

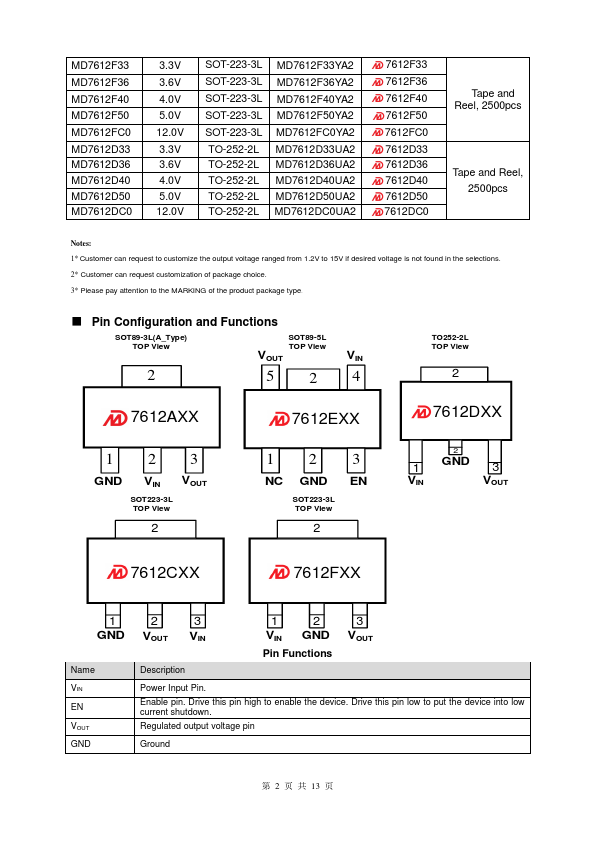

MD7612E50 Datasheet Preview Page 2 MD7612E50 Datasheet Preview Page 3

Datasheet Details

Part number:

MD7612E50, MD7612

Manufacturer:

MINGDA MICROTRONICS

File Size:

1.17 MB

Description:

Cmos voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: MD7612E50, MD7612.
Please refer to the document for exact specifications by model.
