MM1701FHBE, MM1700KHBE, Low-Saturation 1000mA Regulators

MITSUMI Low-Saturation 1000mA Regulators MM170 Low-Saturation 1000mA Regulators Monolithic IC MM170 Series Series Outline This IC is a small stabi.

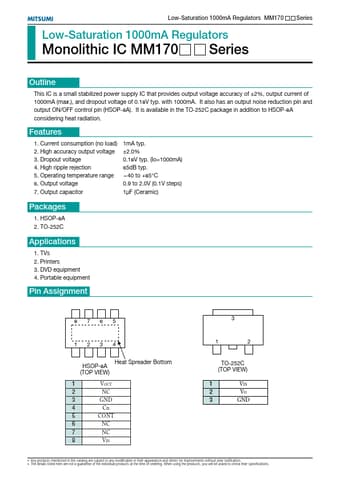

datasheet Preview Page 1 from Datasheet4u.com

MM1700KHBE-MITSUMI.pdf

MM1701FHBE Datasheet Preview — This datasheet PDF includes multiple part numbers: MM1701FHBE, MM1700KHBE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MM1701FHBE, MM1700KHBE

Manufacturer:

MITSUMI

File Size:

90.05 KB

Description:

Low-Saturation 1000mA Regulators

Note:

This datasheet PDF includes multiple part numbers: MM1701FHBE, MM1700KHBE.
Please refer to the document for exact specifications by model.

Features

* 1. Current consumption (no load) 2. High accuracy output voltage 3. Dropout voltage 4. High ripple rejection 5. Operating temperature range 6. Output voltage 7. Output capacitor 1mA typ. ±2.0% 0.18V typ. (Io=1000mA) 65dB typ. -40 to +85°C 0.9 to 2.0V (0.1V steps) 1µF (Ceramic) Packages 1. HSOP-8A

Applications

* 1. TVs 2. Printers 3. DVD equipment 4. Portable equipment Pin Assignment 8765 3 1234 HSOP-8A Heat Spreader Bottom (TOP VIEW) 1 VOUT 2 NC 3 GND 4 Cn 5 CONT 6 NC 7 NC 8 VIN 12 TO-252C (TO
