MM3241J CMOS Regulator

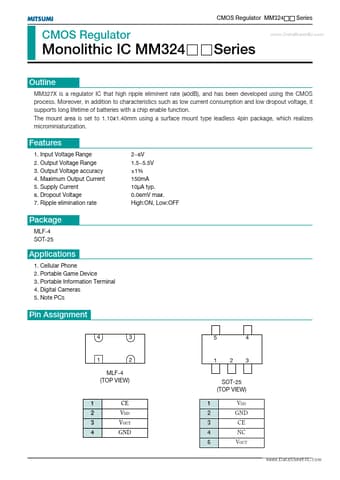

MITSUMI CMOS Regulator Monolithic IC MM324 CMOS Regulator MM324 Series Series www.DataSheet4U.com Outline MM327X is a regulator IC that high ripple eliminent rate (80dB), and has been developed using the CMOS process. Moreover, in addition to characteristics such as low current consumption and low dropout voltage, it supports long lifetime of batteries with a chip enable function. The mount area is set to 1.10x1.40mm using a surface mount type leadless 4pin package, which realizes microminia.

MM3241J Features

* 1. Input Voltage Range 2. Output Voltage Range 3. Output Voltage accuracy 4. Maximum Output Current 5. Supply Current 6. Dropout Voltage 7. Ripple elimination rate 2~6V 1.5~5.5V ±1% 150mA 10µA typ. 0.06mV max. High:ON, Low:OFF Package MLF-4 SOT-25 Applications 1. Cellular Phone 2. Portable Game De
