MM3242D, MM324 - CMOS Regulator

MITSUMI

📥 Download Datasheet

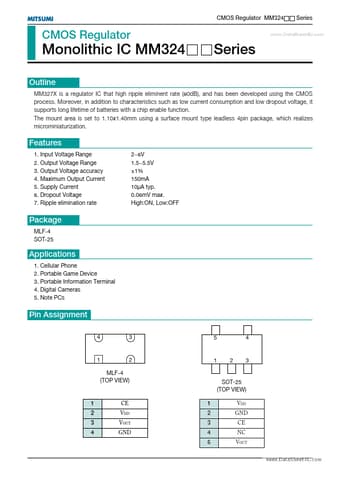

MM3242D Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3242D, MM324. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MM3242D, MM324
Manufacturer	MITSUMI
File Size	87.58 KB
Description	CMOS Regulator
Datasheet	MM324_MITSUMI.pdf
Note	This datasheet PDF includes multiple part numbers: MM3242D, MM324. Please refer to the document for exact specifications by model.

MM3242D Product details

Features

1. Input Voltage Range 2. Output Voltage Range 3. Output Voltage accuracy 4. Maximum Output Current 5. Supply Current 6. Dropout Voltage 7. Ripple elimination rate 2~6V 1.5~5.5V ±1% 150mA 10µA typ. 0.06mV max. High:ON, Low:OFF Package MLF-4 SOT-25.
