PST807, PST803 - System Reset IC

MITSUMI

Datasheet Details

Part number	PST807, PST803
Manufacturer	MITSUMI
File Size	110.06 KB
Description	System Reset IC

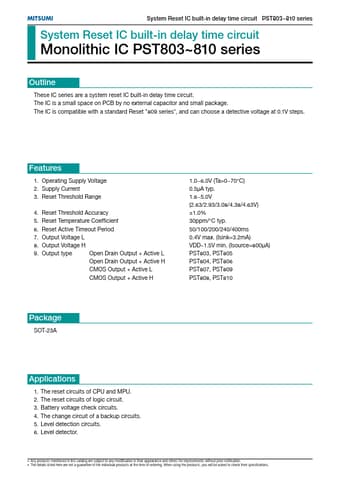

Datasheet	PST803-MITSUMI.pdf
Note	This datasheet PDF includes multiple part numbers: PST807, PST803. Please refer to the document for exact specifications by model.

1. Operating Supply Voltage 2. Supply Current 3. Reset Threshold Range 4. Reset Threshold Accuracy 5. Reset Temperature Coefﬁcient 6. Reset Active Timeout Period 7. Output Voltage L 8. Output Voltage H 9. Output type Open Drain Output + Active L Open Drain Output + Active H CMOS Output + Active L CMOS Output + Active H 1.0~6.0V (Ta=0~70°C) 0.5µA typ. 1.6~5.0V (2.63/2.93/3.08/4.38/4.63V) ±1.0% 30ppm/°C typ. 50/100/200/240/400ms 0.4V max. (Isink=3.2mA) VDD-1.5V min. (Isource=800µA) PST8.
