PST871A, PST87XX, CMOS System Reset IC

MITSUMI CMOS System Reset IC built-in delay time circuit PST87XX, 88XX Series CMOS System Reset IC built-in delay time circuit Monolithic IC PST87XX.

PST87XX-MITSUMI.pdf

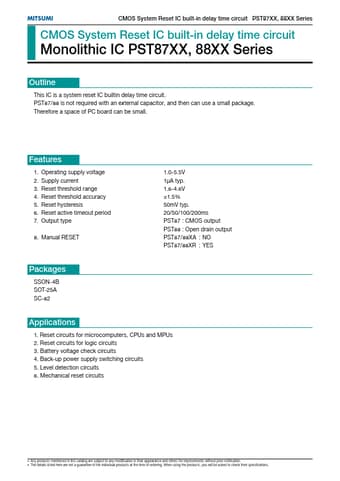

PST871A Datasheet Preview — This datasheet PDF includes multiple part numbers: PST871A, PST87XX. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PST871A, PST87XX

Manufacturer:

MITSUMI

File Size:

98.99 KB

Description:

CMOS System Reset IC

Note:

This datasheet PDF includes multiple part numbers: PST871A, PST87XX.
Please refer to the document for exact specifications by model.

Features

* 1. Operating supply voltage 2. Supply current 3. Reset threshold range 4. Reset threshold accuracy 5. Reset hysteresis 6. Reset active timeout period 7. Output type 8. Manual RESET 1.0-5.5V 1µA typ. 1.6-4.6V ±1.5% 50mV typ. 20/50/100/200ms PST87 : CMOS output PST88 : Open drain output PST87/88XA :

Applications

* 1. Reset circuits for microcomputers, CPUs and MPUs 2. Reset circuits for logic circuits 3. Battery voltage check circuits 4. Back-up power supply switching circuits 5. Level detection circuits 6. Mechanical reset circuits
* Any products mentioned in this ca
