DSR1M, DSR1A General Purpose Rectifier Diodes

Description

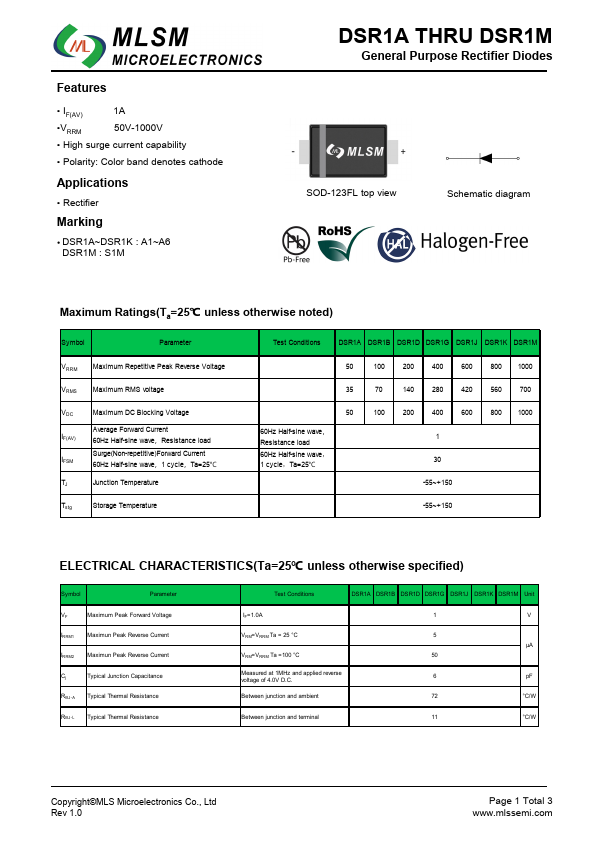

📥 Download Datasheet

DSR1M Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR1M, DSR1A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DSR1M, DSR1A
Manufacturer: MLSM
File Size: 686.11 KB
Datasheet: DSR1A-MLSM.pdf
Description: General Purpose Rectifier Diodes
Note: This datasheet PDF includes multiple part numbers: DSR1M, DSR1A.
Please refer to the document for exact specifications by model.

Features

* IF(AV) 1A
* VRRM 50V-1000V
* High surge current capability

Applications

* Rectifier Marking
* DSR1A~DSR1K : A1~A6 DSR1M : S1M DSR1A THRU DSR1M General Purpose Rectifier Diodes S1 D2 D1 SOD-123FL top view Schematic diagram Maximum Ratings(Ta=25℃ unless otherwise noted) Symbol Parameter Test Conditions DSR1A DSR1B DSR1D DSR1G DSR1J DSR1K DSR1M VRR
