IHR18650C Datasheet - MOLICEL

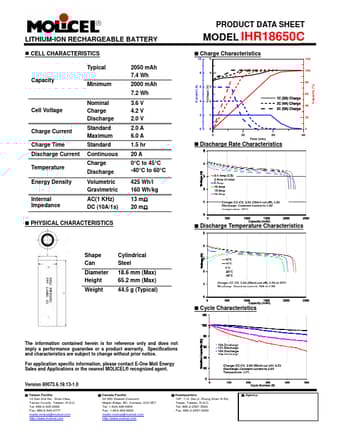

IHR18650C LITHIUM-ION RECHARGEABLE BATTERY

Current (A) Voltage (V) Capacity (%) LITHIUM-ION RECHARGEABLE BATTERY CELL CHARACTERISTICS Capacity Typical Minimum Cell Voltage Charge Current Charge Time Discharge Current Temperature Energy Density Internal Impedance Nominal Charge Discharge Standard Maximum Standard Continuous Charge Discharge Volumetric Gravimetric AC(1 KHz) DC (10A/1s) 2050 mAh 7.4 Wh 2000 mAh 7.2 Wh 3.6 V 4.2 V 2.0 V 2.0 A 6.0 A 1.5 hr 20 A 0°C to 45°C -40°C to 60°C 425 Wh/l 160 Wh/kg 13 mΩ 20 mΩ

IHR18650C-MOLICEL.pdf

IHR18650C Datasheet Preview — Preview of IHR18650C PDF

Datasheet Details

Part number:

IHR18650C

Manufacturer:

MOLICEL

File Size:

921.70 KB

Description:

Lithium-ion rechargeable battery.
