A1505S-2WR2

DC/DC Converter

A1505S-2WR2 Features

* z Continuous short-circuit protection z Operating temperature range: -40℃ to +105℃ z High efficiency up to 86% z High power density z Miniature SIP package z Isolation voltage: 1.5K VDC z No external component required z International standard pin-out Patent Protection RoHS A_S-2WR2 & B_S-2WR2 seri

A1505S-2WR2 Datasheet (241.54 KB)

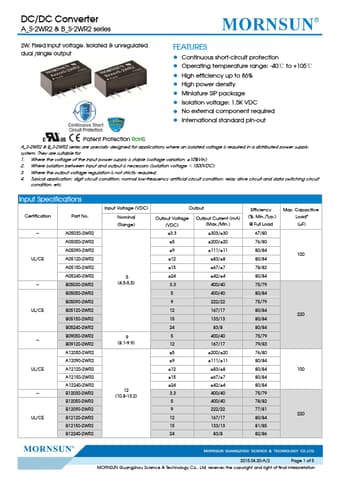

Preview of A1505S-2WR2 PDF

Datasheet Details

Part number:

A1505S-2WR2

Manufacturer:

MORNSUN

File Size:

241.54 KB

Description:

Dc/dc converter.
