B1205LS-1W, B0303-LS, DUAL/SINGLE OUTPUT DC-DC CONVERTER

A_S-1W & B_LS-1W Series 1W, FIXED INPUT, ISOLATED & UNREGULATED DUAL/SINGLE OUTPUT DC-DC CONVERTER .

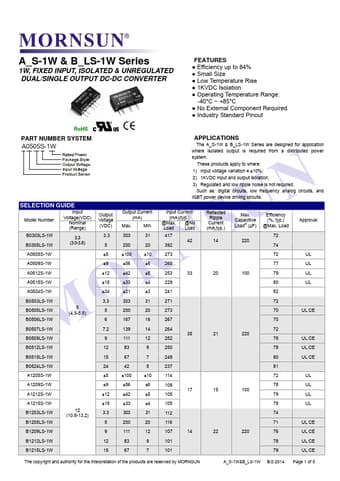

datasheet Preview Page 1 from Datasheet4u.com

B0303-LS-1W.pdf

B1205LS-1W Datasheet Preview — This datasheet PDF includes multiple part numbers: B1205LS-1W, B0303-LS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

B1205LS-1W, B0303-LS

Manufacturer:

MORNSUN

File Size:

289.56 KB

Description:

DUAL/SINGLE OUTPUT DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: B1205LS-1W, B0303-LS.
Please refer to the document for exact specifications by model.

Features

* Efficiency up to 84%
* Small Size
* Low Temperature Rise
* 1KVDC Isolation
* Operating Temperature Range: -40°C ~ +85°C
* No External Component Required
* Industry Standard Pinout RoHS PART NUMBER SYSTEM A0505S-1W SELECTION GUIDE Input Model Number Voltage(VDC) Nom

Applications

* The A_S-1W & B_LS-1W Series are designed for application where isolated output is required from a distributed power system. These products apply to where: 1) Input voltage variation ≤ ±10%; 2) 1KVDC input and output isolation; 3) Regulated and low ripple noise is not required. Such as: digital circu
