B1224S-2W, B1205S-2W, DUAL/SINGLE OUTPUT DC-DC CONVERTER

A_S-2W & B_S-2W Series 2W, FIXED INPUT, ISOLATED & UNREGULATED DUAL/SINGLE OUTPUT DC-DC CONVERTER PRODUCT .

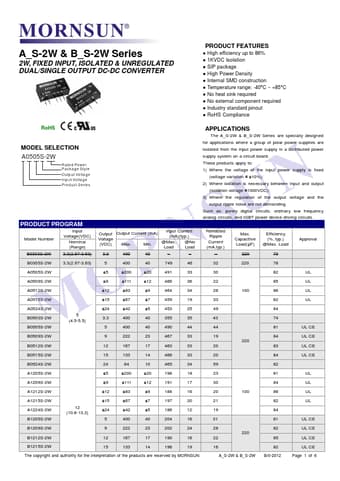

datasheet Preview Page 1 from Datasheet4u.com

B1205S-2W-MORNSUN.pdf

B1224S-2W Datasheet Preview — This datasheet PDF includes multiple part numbers: B1224S-2W, B1205S-2W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

B1224S-2W, B1205S-2W

Manufacturer:

MORNSUN

File Size:

582.83 KB

Description:

DUAL/SINGLE OUTPUT DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: B1224S-2W, B1205S-2W.
Please refer to the document for exact specifications by model.

Features

* High efficiency up to 86%
* 1KVDC Isolation
* SIP package
* High Power Density
* Internal SMD construction
* Temperature range: -40°C ~ +85°C
* No heat sink required
* No external component required
* Industry standard pinout
* RoHS Compliance RoHS MODEL SE

Applications

* The A_S-2W & B_S-2W Series are specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is fixed (voltage variati
