E0505LT-1WR3

DC/DC Converter

MORNSUN

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	MORNSUN	E0505LT-1WR3	ISOLATED MODULE DC DC CONVERTER	DigiKey	50	1 units	$2.51	🛒 Buy Now

E0505LT-1WR3 Datasheet (1.65 MB)

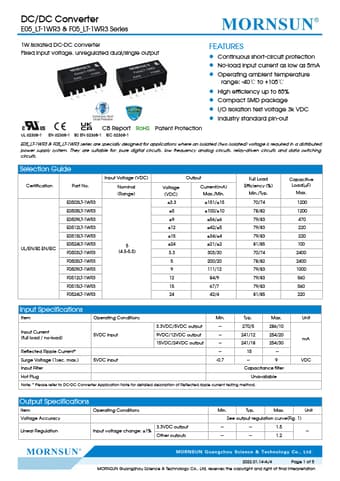

E0505LT-1WR3 Datasheet Preview — Preview of E0505LT-1WR3 PDF

Datasheet Details

Part number:

E0505LT-1WR3

Manufacturer:

MORNSUN

File Size:

1.65 MB

Description:

Dc/dc converter.

E0505LT-1WR3 Features

* Continuous short-circuit protection

* No-load input current as low as 5mA

* Operating ambient temperature range: -40℃ to +105℃

* High efficiency up to 85%

* Compact SMD package

* I/O isolation test voltage 3k VDC

* Industry standard pin-out CB Report RoHS Patent Protec

E0505LT-1WR3 General Description

of Reflected ripple current testing method. Unit mA VDC Output Specifications Item Operating Conditions Voltage Accuracy Linear Regulation 3.3VDC output Input voltage change: ±1% Other outputs Min. Typ. Max. Unit See output regulation curve(Fig. 1)

*

* 1.5

* .
