G2409S-2WR2 - DC/DC Converter

Download the G2409S-2WR2 datasheet PDF. This datasheet also covers the G2405S-2WR2 variant, as both devices belong to the same dc/dc converter family and are provided as variant models within a single manufacturer datasheet.

Description

of Reflected ripple current testing method.

Min.

Typ.

Features

  • Fixed input voltage and unregulated single or dual output.
  • SIP package High efficiency up to 84%.
  • Reinforced insulation.
  • Patient leakage current 2µA max.
  • I/O isolation test voltage 4.2k VAC or 6k VDC.
  • Operating ambient temperature: -40℃ ~ +85℃.
  • Internal surface mounted design.
  • Industry standard pin-out.
  • EN60601-1, ANSI/AAMI ES60601-1 approved Patent Protection RoHS (1xMOPP/2xMOOP) G_S-2WR2 & H_S-2WR2 series meets reinforced insulation r.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (G2405S-2WR2-MORNSUN.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number G2409S-2WR2
Manufacturer MORNSUN
File Size 1.08 MB
Description DC/DC Converter
Datasheet download datasheet G2409S-2WR2 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
G240 SIDACs EIC
G24006B LCD FindLCD
G2402 N-CHANNEL ENHANCEMENT MODE POWER MOSFET GTM
G240HW01-V0 LCD Module AUO
G240HW01-V1 Color TFT-LCD AUO

Other Datasheets by MORNSUN

Part Number Description
G2409D-2W DUAL/SINGLE OUTPUT DC-DC CONVERTER
G2405D-2W DUAL/SINGLE OUTPUT DC-DC CONVERTER
G2405S-2W DC/DC Converter
G2405S-2WR2 DC/DC Converter
G2412D-2W DUAL/SINGLE OUTPUT DC-DC CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

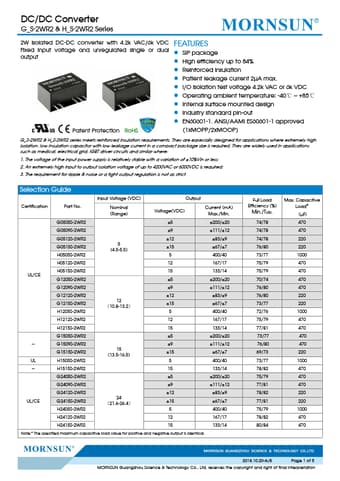

DC/DC Converter G_S-2WR2 & H_S-2WR2 Series 2W isolated DC-DC converter with 4.2k VAC/6k VDC FEATURES Fixed input voltage and unregulated single or dual output   SIP package High efficiency up to 84%  Reinforced insulation  Patient leakage current 2µA max.  I/O isolation test voltage 4.2k VAC or 6k VDC  Operating ambient temperature: -40℃ ~ +85℃  Internal surface mounted design  Industry standard pin-out  EN60601-1, ANSI/AAMI ES60601-1 approved Patent Protection RoHS (1xMOPP/2xMOOP) G_S-2WR2 & H_S-2WR2 series meets reinforced insulation requirements. They are especially designed for applications where extremely high isolation, low insulation capacitor with low leakage current in a compact package size is required.
