LB10-10B03 - power converter

Datasheet Summary

Features

  • universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, meets IEC61000, UL60950, EN60601 and IEC60950 standards, and is UL & CE certified, and widely used in industrial, office and civil.

📥 Download Datasheet

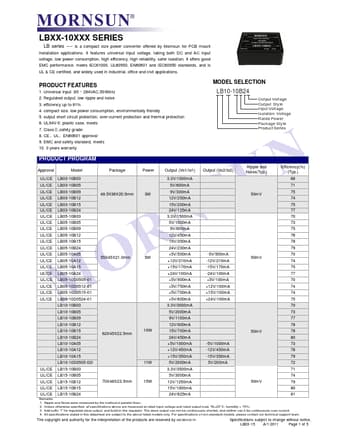

Datasheet preview – LB10-10B03

Datasheet Details

Part number LB10-10B03
Manufacturer MORNSUN
File Size 475.66 KB
Description power converter
Datasheet download datasheet LB10-10B03 Datasheet
Additional preview pages of the LB10-10B03 datasheet.

📁 Similar Datasheet

Other Datasheets by MORNSUN

Full PDF Text Transcription

Click to expand full text
LBXX-10XXX SERIES LB series ---- is a compact size power converter offered by Mornsun for PCB mount installation applications. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, meets IEC61000, UL60950, EN60601 and IEC60950 standards, and is UL & CE certified, and widely used in industrial, office and civil applications. PRODUCT FEATURES 1. Universal Input :85 ~ 264VAC,50/60Hz 2. Regulated output, low ripple and noise 3. efficiency up to 81% 4. compact size, low power consumption, environmentally friendly 5. output short circuit protection, over-current protection and thermal protection 6. UL94V-0; plastic case, meets 7. ClassⅡ,safety grade: 8.
