LDE02-23B12

Ultra small size AC/DC converter

LDE02-23B12 Features

* Wide Input voltage Range: 85 - 305VAC/120 - 430VDC

* AC and DC dual-use(input from the same terminal)

* High I/O isolation test voltage up to 4000VAC

* Operating ambient temperature range: -40℃ to +70℃

* High power density, high efficiency, green power

* Output short

LDE02-23B12 Datasheet (1.53 MB)

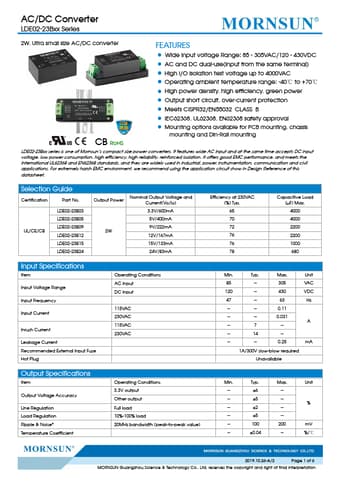

Preview of LDE02-23B12 PDF

Datasheet Details

Part number:

LDE02-23B12

Manufacturer:

MORNSUN

File Size:

1.53 MB

Description:

Ultra small size ac/dc converter.
