T1100L - Signal conditioning modules

Datasheet Summary

Features

  • Two-port isolation (signal input and signal output).
  • High accuracy of 0.1% Full Scale.
  • High linearity of 0.1% Full Scale.
  • Isolation test voltage 3kVDC for 60s.
  • Low voltage-drop of 3V typical at 20mA input.
  • Extremely low temperature coefficient of 35PPM/℃.
  • Industrial grade (Operating ambient temperature range -25℃ to +71℃).
  • High reliability with MTBF >500,000 hours T1100L is passive signal isolation modules with a standard analog amplifier, 4-20mA current.

📥 Download Datasheet

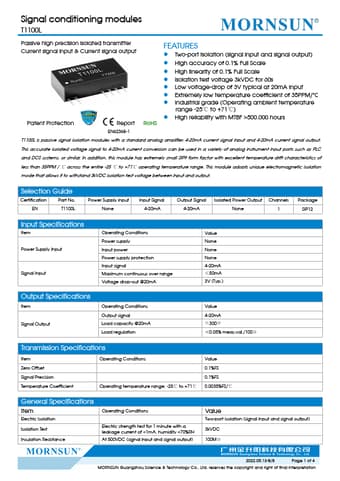

Datasheet preview – T1100L
