TE6S6SN-3.3-9 - Isolated Transmitter

Product Overview

MORNSUN

📥 Download Datasheet

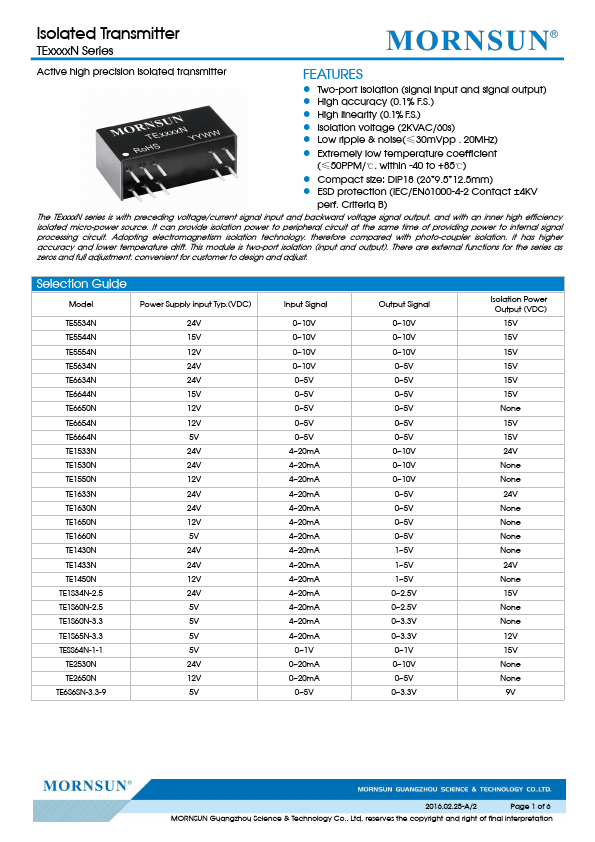

TE6S6SN-3.3-9 Isolated Transmitter by MORNSUN - Datasheet Preview — Datasheet preview – TE6S6SN-3.3-9

Datasheet Details

Part number	TE6S6SN-3.3-9
Manufacturer	MORNSUN
File Size	1.14 MB
Description	Isolated Transmitter
Datasheet	TE6S6SN-3.3-9 Datasheet
Note	This datasheet PDF includes multiple part numbers: TE6S6SN-3.3-9, TE6634N. Please refer to the document for exact specifications by model.
Additional preview pages of the TE6S6SN-3.3-9 datasheet.

Product details

Features

Two-port isolation (signal input and signal output).
High accuracy (0.1% F. S. ).
High linearity (0.1% F. S. ).
Isolation voltage (2KVAC/60s).
Low ripple & noise(≤30mVpp , 20MHz).
Extremely low temperature coefficient (≤50PPM/℃, within -40 to +85℃).
Compact size: DIP18 (26.
9.5.
12.5mm).
ESD protection (IEC/EN61000-4-2 Contact ±4KV perf. Criteria B) The TExxxxN series is with preceding voltage/current signal input and backward voltage signal outpu.
