VRB2405ZP-6WR2, VRB1203ZP-6WR2 - DC/DC Converter

MORNSUN

📥 Download Datasheet

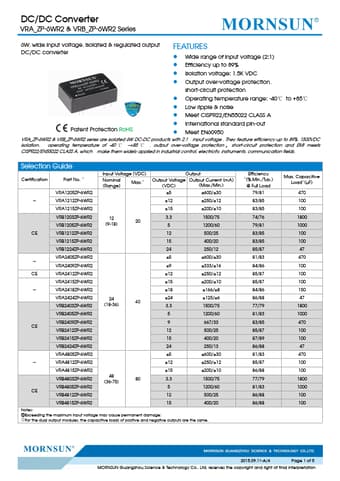

VRB2405ZP-6WR2 Datasheet Preview — This datasheet PDF includes multiple part numbers: VRB2405ZP-6WR2, VRB1203ZP-6WR2. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VRB2405ZP-6WR2, VRB1203ZP-6WR2
Manufacturer	MORNSUN
File Size	0.96 MB
Description	DC/DC Converter
Datasheet	VRB1203ZP-6WR2-MORNSUN.pdf
Note	This datasheet PDF includes multiple part numbers: VRB2405ZP-6WR2, VRB1203ZP-6WR2. Please refer to the document for exact specifications by model.

VRB2405ZP-6WR2 Product details

Features

Wide range of input voltage (2:1).
Efficiency up to 89%.
Isolation voltage: 1.5K VDC.
Output over-voltage protection, short-circuit protection.
Operating temperature range: -40℃ to +85℃.
Low ripple & noise.
Meet CISPR22/EN55022 CLASS A Patent Protection RoHS.
International standard pin-out.
Meet EN60950 VRA_ZP-6WR2 & VRB_ZP-6WR2 series are isolated 6W DC-DC products with 2:1 input voltage . They feature efficiency up to 89%, 1500VDC isolati.
