WRA0505P-3WR2 - DC/DC Converter

MORNSUN

📥 Download Datasheet

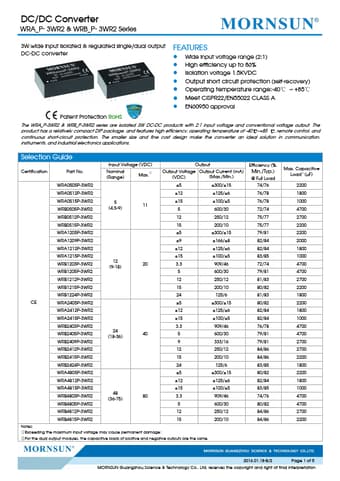

WRA0505P-3WR2 Datasheet Preview — Preview of WRA0505P-3WR2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WRA0505P-3WR2
Manufacturer	MORNSUN
File Size	1.76 MB
Description	DC/DC Converter
Datasheet	WRA0505P-3WR2-MORNSUN.pdf

WRA0505P-3WR2 Product details

Features

Wide input voltage range (2:1).
High efficiency up to 86%.
Isolation voltage 1.5KVDC.
Output short circuit protection (self-recovery).
Operating temperature range:-40℃ ~ +85℃.
Meet CISPR22/EN55022 CLASS A.
EN60950 approval Patent Protection RoHS The WRA_P-3WR2 & WRB_P-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact DIP package, and features high efficiency, operating tempe.
