WRA0515ZP-3WR2, WRA0505ZP-3WR2, DC/DC Converter

DC/DC Converter WRA_ZP-3WR2 & WRB_ZP-3WR2 Series 3W,wide input isolated & regulated dual / single output DC-DC converter Patent Protection RoHS FEAT.

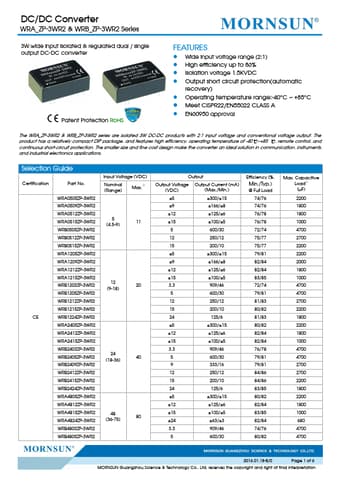

datasheet Preview Page 1 from Datasheet4u.com

WRA0505ZP-3WR2-MORNSUN.pdf

WRA0515ZP-3WR2 Datasheet Preview — This datasheet PDF includes multiple part numbers: WRA0515ZP-3WR2, WRA0505ZP-3WR2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

WRA0515ZP-3WR2, WRA0505ZP-3WR2

Manufacturer:

MORNSUN

File Size:

2.62 MB

Description:

DC/DC Converter

Note:

This datasheet PDF includes multiple part numbers: WRA0515ZP-3WR2, WRA0505ZP-3WR2.
Please refer to the document for exact specifications by model.

Features

* Wide input voltage range (2:1)
* High efficiency up to 86%
* Isolation voltage 1.5KVDC
* Output short circuit protection(automatic recovery)
* Operating temperature range:-40°C ~ +85°C
* Meet CISPR22/EN55022 CLASS A
* EN60950 approval The WRA_ZP-3WR2 & WRB_ZP-3WR2 seri

Applications

* Selection Guide Certification Part No. WRA0505ZP-3WR2 WRA0509ZP-3WR2 WRA0512ZP-3WR2 WRA0515ZP-3WR2 WRB0505ZP-3WR2 WRB0512ZP-3WR2 WRB0515ZP-3WR2 WRA1205ZP-3WR2 WRA1209ZP-3WR2 WRA1212ZP-3WR2 WRA1215ZP-3WR2 WRB1203ZP-3WR2 WRB1205ZP-3WR2 WRB1212ZP-3WR2 WRB1215ZP-3WR2 CE WRB1224ZP-3W
