WRA4812D-10W, WRA0505D-10W, DUAL/SINGLE OUTPUT DC-DC CONVERTER

WRA_D-10W & WRB_D-10W Series 10W, 2:1 WIDE INPUT ISOLATED & REGULATED DUAL/SINGLE OUTPUT DC-DC CONVERTER Patent Protection RoHS .

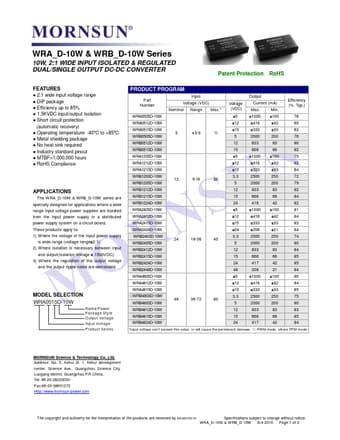

datasheet Preview Page 1 from Datasheet4u.com

WRA0505D-10W-MORNSUN.pdf

WRA4812D-10W Datasheet Preview — This datasheet PDF includes multiple part numbers: WRA4812D-10W, WRA0505D-10W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

WRA4812D-10W, WRA0505D-10W

Manufacturer:

MORNSUN

File Size:

317.44 KB

Description:

DUAL/SINGLE OUTPUT DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: WRA4812D-10W, WRA0505D-10W.
Please refer to the document for exact specifications by model.

Features

* 2:1 wide input voltage range
* DIP package
* Efficiency up to 85%
* 1.5KVDC input/output Isolation
* Short circuit protection (automatic recovery)
* Operating temperature: -40°C to +85°C
* Metal shielding package
* No heat sink required
* Industry standard pinou

Applications

* The WRA_D-10W & WRB_D-10W series are specially designed for applications where a wide range input voltage power supplies are isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is wide r
