M1357 Datasheet - MOSDESIGN

4-CHANNEL LED DIMMER DRIVER

M1357 Features

* ‧ 4 open drain outputs directly drive LEDs ‧ Constant sink current of 15mA per bit ‧ 256 brightness steps ‧ A0~A3 is External address selection. ‧ Internal oscillator requires no external components ‧ Controlled by Serial Bus Micro-Processor Interface ‧ Internal power-on reset ‧ Noise filter on SCL/

M1357 General Description

The M1357 is a monolithic, 4-channel NMOS PWM LED drivers Controller can also be directly programmed through an Serial Bus Micro-Processor Interface for applications where user defined LED pattern, color, and intensity programmability is a priority. Optimized for dimming LEDs in 256 discrete steps f.

M1357 Datasheet (179.26 KB)

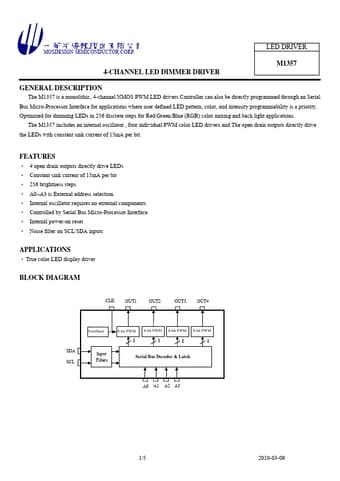

Preview of M1357 PDF

Datasheet Details

Part number:

M1357

Manufacturer:

MOSDESIGN

File Size:

179.26 KB

Description:

4-channel led dimmer driver.
