GBJ20K - GLASS PASSIVATED BRIDGE SINGLE-PHASE

Product Overview

MOSPEC

📥 Download Datasheet

GBJ20K GLASS PASSIVATED BRIDGE SINGLE-PHASE by MOSPEC - Datasheet Preview — Datasheet preview – GBJ20K

Datasheet Details

Part number	GBJ20K
Manufacturer	MOSPEC
File Size	88.03 KB
Description	GLASS PASSIVATED BRIDGE SINGLE-PHASE
Datasheet	GBJ20K Datasheet
Note	This datasheet PDF includes multiple part numbers: GBJ20K, GBJ20A. Please refer to the document for exact specifications by model.

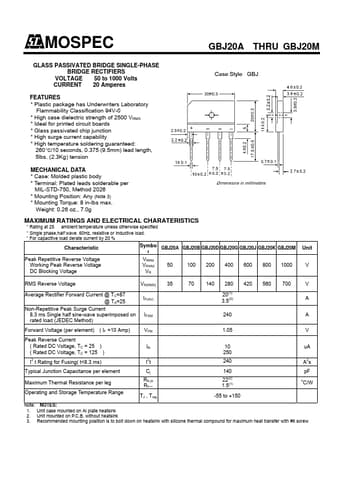

Additional preview pages of the GBJ20K datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High case dielectric strength of 2500 VRMS.
Ideal for printed circuit boards.
Glass passivated chip junction.
High surge current capability.
High temperature soldering guaranteed: 260 oC/10 seconds, 0.375 (9.5mm) lead length, 5lbs. (2.3Kg) tension.
