HER205, HER201 - Switchmode Power Rectifiers

HER205 Description

MOSPEC HER201 Thru HER205 Switchmode Power Rectifiers Designed for use in switching power supplies.inverters and as free wheeling diodes.These st.

HER205 Features

* High Surge Capacity Low Power Loss, High efficiency Glass Passivated chip junctions 150 Operating Junction Temperature Low Stored Charge Majority Carrier Conduction Low Forward Voltage , High Current Capability Ultrafast 50 & 75 Nanosecond Recovery Time Plastic Material used Carries Underwriters La

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER205, HER201. Please refer to the document for exact specifications by model.

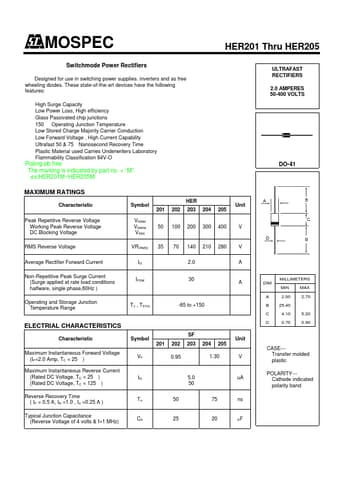

datasheet Preview Page 2

Datasheet Details

Part number
HER205, HER201
Manufacturer
MOSPEC
File Size
58.35 KB
Datasheet
HER201-MOSPEC.pdf
Description
Switchmode Power Rectifiers
Note
This datasheet PDF includes multiple part numbers: HER205, HER201.
Please refer to the document for exact specifications by model.
