RS802
FEATURES
Low cost
High forward surge current capability
Ideal for printed circuit board
High temperature soldering guaranteed: 260oc/10 second,0.375”(9.5mm)lead length at 5 lbs. (2.3kg) tension.
MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-O rate flame retardant
Terminals Lead Solderable Per MIL-STD-202 method 208C Polarity Polarity symbols marked on case Mounting :Thru hole for #6 screw, 5 in,-lbs.Torqute Max. Weight 0.27 ounce, 7.59 gram

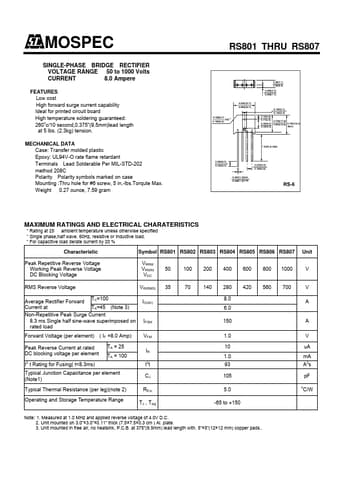

RS801 THRU RS807
MAXIMUM RATINGS AND ELECTRICAL CHARATERISTICS
- Rating at 25 ambient temperature unless otherwise specified
- Single phase,half wave. 60Hz, resistive or inductive load.
- For capacitive load derate current by 20 %
Characteristic
Symbol RS801 RS802 RS803 RS804 RS805 RS806 RS807
Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
VRRM VRWM VDC
100 200 400 600 800 1000
RMS Reverse Voltage
VR(RMS)
Average Rectifier Forward TC=100
Current at
TA=45 (Note 3)
Non-Repetitiv...
