S20C100, S20C70 Schottky Barrier Power Rectifiers

S20C100 Description

MOSPEC S20C70 Thru S20C100 Schottky Barrier Power Rectifiers Using the Schottky Barrier principle with a Molybdenum barrier metal.These state-of-th.

S20C100 Features

* epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes. Features Low Forward Voltage. Low Switching noise. High Current Capacity Guarantee Reverse Avalanche. Guard-Ring

S20C100 Applications

* MOSPEC makes no representation or warranty that such application will be suitable for the specified use without further testing or modification. The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by MOSPEC for any infring

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S20C100, S20C70. Please refer to the document for exact specifications by model.

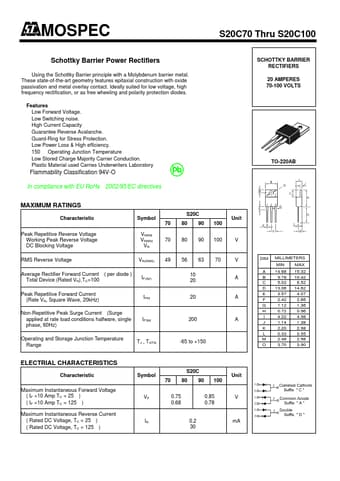

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S20C100, S20C70
Manufacturer
MOSPEC
File Size
191.63 KB
Datasheet
S20C70-MOSPEC.pdf
Description
Schottky Barrier Power Rectifiers
Note
This datasheet PDF includes multiple part numbers: S20C100, S20C70.
Please refer to the document for exact specifications by model.
