MOT60R380A, MOT60R380F N-CHANNEL MOSFET

MOT

Description

MOT MOT60R380F/MOT60R380A N-CHANNEL MOSFET * PRODUCT CHARACTERISTICS Symbol 2.Drain VDSS RDS(on)max(@VGS =10 V) Qg@type 600V 0.38Ω 14nC .

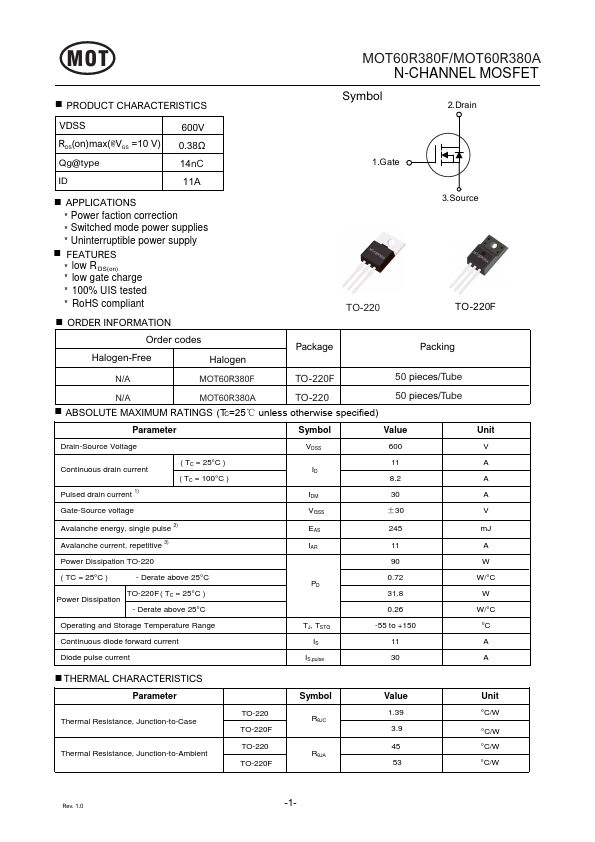

📥 Download Datasheet

MOT60R380A Datasheet Preview — This datasheet PDF includes multiple part numbers: MOT60R380A, MOT60R380F. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MOT60R380A, MOT60R380F
Manufacturer: MOT
File Size: 3.44 MB
Datasheet: MOT60R380F-MOT.pdf
Description: N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: MOT60R380A, MOT60R380F.
Please refer to the document for exact specifications by model.

Features

* low R DS(on)
* low gate charge
* 100% UIS tested
* RoHS compliant
* ORDER INFORMATION Order codes Halogen-Free Halogen 3.Source MOT60R380F MOT60R380A TO-220 Package TO -220F Packing N/A MOT60R380F TO-220F N/A MOT60R380A TO-220
* ABSOLUTE MAXIMUM RATINGS (T

Applications

* Power faction correction
* Switched mode power supplies
* Uninterruptible power supply
