MOT60R380F N-CHANNEL MOSFET

MOT

Description

MOT MOT60R380F/MOT60R380A N-CHANNEL MOSFET * PRODUCT CHARACTERISTICS Symbol 2.Drain VDSS RDS(on)max(@VGS =10 V) Qg@type 600V 0.38Ω 14nC .

📥 Download Datasheet

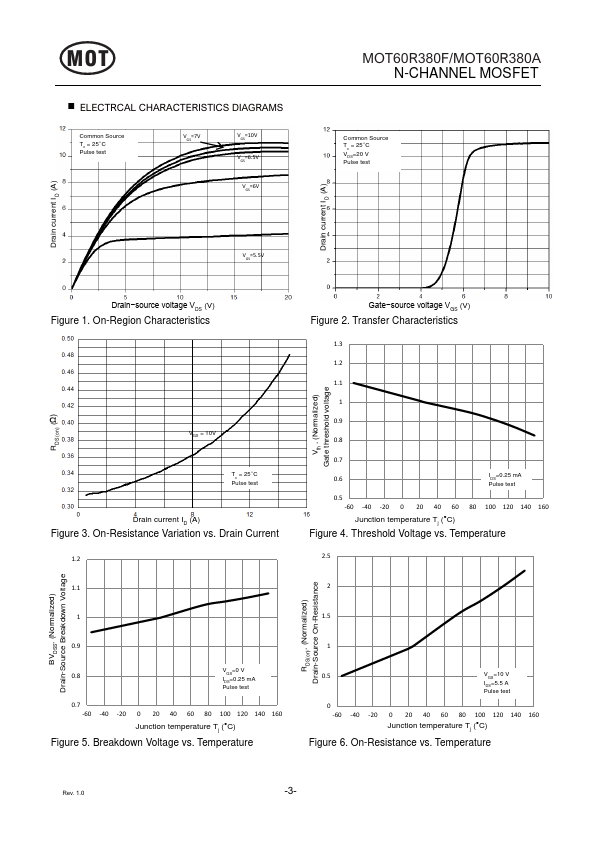

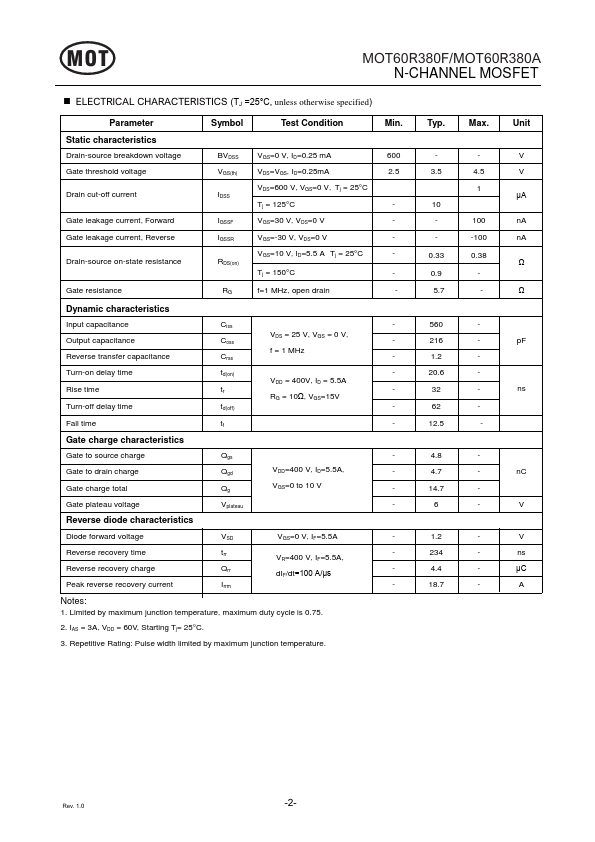

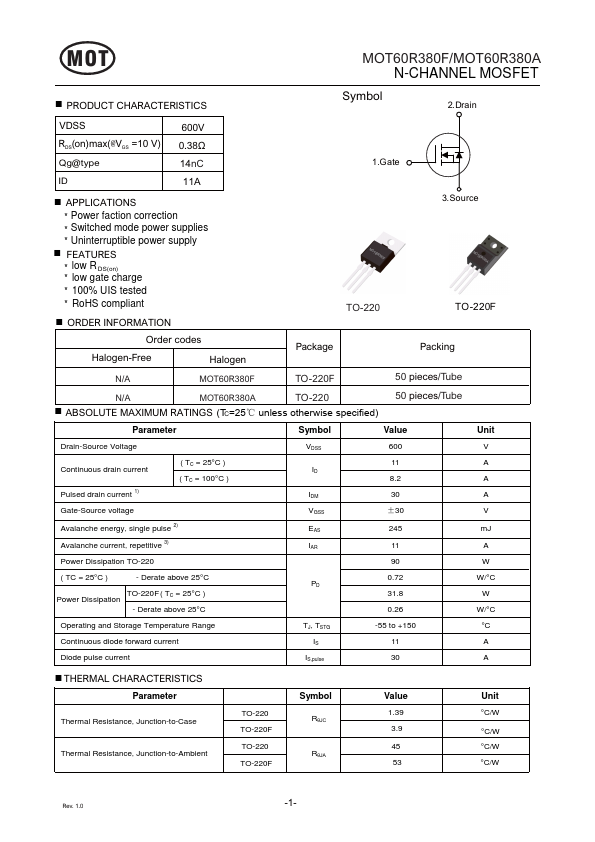

MOT60R380F Datasheet Preview — Preview of MOT60R380F PDF

Datasheet Specifications

Part number: MOT60R380F
Manufacturer: MOT
File Size: 3.44 MB
Datasheet: MOT60R380F-MOT.pdf
Description: N-CHANNEL MOSFET

Features

* low R DS(on)
* low gate charge
* 100% UIS tested
* RoHS compliant
* ORDER INFORMATION Order codes Halogen-Free Halogen 3.Source MOT60R380F MOT60R380A TO-220 Package TO -220F Packing N/A MOT60R380F TO-220F N/A MOT60R380A TO-220
* ABSOLUTE MAXIMUM RATINGS (T

Applications

* Power faction correction
* Switched mode power supplies
* Uninterruptible power supply
