FL42STH33-0476A - High Torque Hybrid Stepping Motor

Download the FL42STH33-0476A datasheet PDF. This datasheet also covers the FL42STH25-0404A variant, as both devices belong to the same high torque hybrid stepping motor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FL42STH25-0404A-MOTIONCONTROLPRODUCTS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FL42STH33-0476A
Manufacturer MOTION CONTROL PRODUCTS
File Size 78.45 KB
Description High Torque Hybrid Stepping Motor
Datasheet download datasheet FL42STH33-0476A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FL400 IN-LINE MINIATURE SINGLE PHASE SILICON BRIDGE(VOLTAGE - 50 to 800 Volts CURRENT - 4.0 Amperes) Pan Jit International Inc.
FL400 IN-LINE MINIATURE SINGLE PHASE SILICON BRIDGE TRSYS
FL401 IN-LINE MINIATURE SINGLE PHASE SILICON BRIDGE(VOLTAGE - 50 to 800 Volts CURRENT - 4.0 Amperes) Pan Jit International Inc.
FL401 IN-LINE MINIATURE SINGLE PHASE SILICON BRIDGE TRSYS
FL402 IN-LINE MINIATURE SINGLE PHASE SILICON BRIDGE(VOLTAGE - 50 to 800 Volts CURRENT - 4.0 Amperes) Pan Jit International Inc.

Other Datasheets by MOTION CONTROL PRODUCTS

Part Number Description
FL42STH33-0404A High Torque Hybrid Stepping Motor
FL42STH33-0316MA High Torque Hybrid Stepping Motor
FL42STH33-0316MB High Torque Hybrid Stepping Motor
FL42STH33-0606MA High Torque Hybrid Stepping Motor
FL42STH33-0606MB High Torque Hybrid Stepping Motor

Full PDF Text Transcription

Click to expand full text

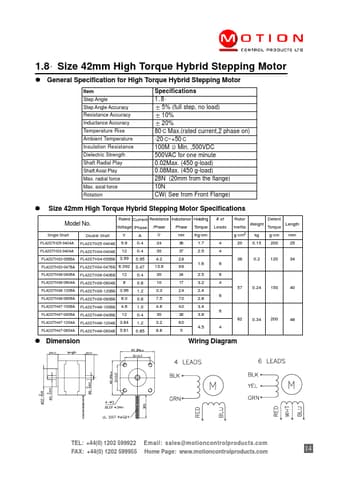

1.8 Size 42mm High Torque Hybrid Stepping Motor General Specification for High Torque Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Shaft Radial Play Shaft Axial Play Max. radial force Max. axial force Rotation Specifications 1.8 5% (full step, no load) 10% 20% 80OC Max.(rated current,2 phase on) -20OC~+50OC 100M Min. ,500VDC 500VAC for one minute 0.02Max. (450 g-load) 0.08Max. (450 g-load) 28N (20mm from the flange) 10N CW( See from Front Flange) Size 42mm High Torque Hybrid Stepping Motor Specifications Model No.
