FL42STH38-1206MB Datasheet - MOTION CONTROL PRODUCTS

FL42STH38-1206MB High Torque Hybrid Stepping Motor

0.9 Size 42mm High Torque Hybrid Stepping Motor General Specification for High Torque Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Shaft Radial Play Shaft Axial Play Max. radial force Max. axial force Rotation Specifications 0.9 5% (full step, no load) 10% 20% 80OC Max.(rated current,2 phase on) -20OC~+50OC 100M Min. ,500VDC 500VAC for one minute 0.02Max. (450 g-.

FL42STH38-1206MB Datasheet (1.23 MB)

Preview of FL42STH38-1206MB PDF

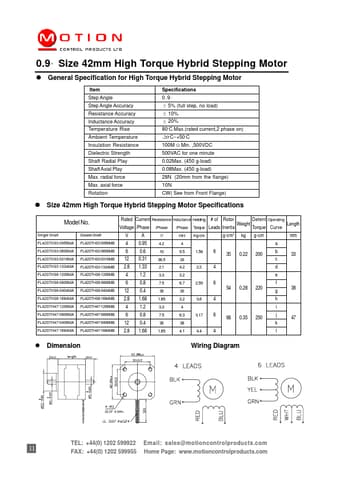

FL42STH38-1206MB Datasheet Preview Page 2 FL42STH38-1206MB Datasheet Preview Page 3

Datasheet Details

Part number:

FL42STH38-1206MB

Manufacturer:

MOTION CONTROL PRODUCTS

File Size:

1.23 MB

Description:

High torque hybrid stepping motor.
