FL86STH156-6204A - High Torque Hybrid Stepping Motor

Download the FL86STH156-6204A datasheet PDF. This datasheet also covers the FL86STH65-5904A variant, as both devices belong to the same high torque hybrid stepping motor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FL86STH65-5904A-MOTIONCONTROLPRODUCTS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FL86STH156-6204A
Manufacturer MOTION CONTROL PRODUCTS
File Size 191.82 KB
Description High Torque Hybrid Stepping Motor
Datasheet download datasheet FL86STH156-6204A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FL810-03-80 High-Power LED Marubeni
FL816 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER GME
FL817 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER GME
FL817 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER FANGJING
FL817A 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER FANGJING

Other Datasheets by MOTION CONTROL PRODUCTS

Part Number Description
FL86STH156-6204B High Torque Hybrid Stepping Motor
FL86STH118-6004A High Torque Hybrid Stepping Motor
FL86STH118-6004B High Torque Hybrid Stepping Motor
FL86STH195-8504A High Torque Hybrid Stepping Motor
FL86STH195-8504B High Torque Hybrid Stepping Motor

Full PDF Text Transcription

Click to expand full text

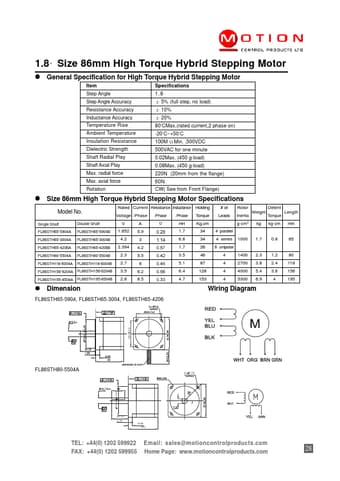

1.8 Size 86mm High Torque Hybrid Stepping Motor General Specification for High Torque Hybrid Stepping Motor Item Step Angle Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Specifications 1.8 5% (full step, no load) 10% 20% 80OCMax.(rated current,2 phase on) Ambient Temperature Insulation Resistance -20OC~+50 CO 100M Min. ,500VDC Dielectric Strength Shaft Radial Play 500VAC for one minute 0.02Max. (450 g-load) Shaft Axial Play Max. radial force 0.08Max. (450 g-load) 220N (20mm from the flange) Max. axial force Rotation 60N CW( See from Front Flange) Size 86mm High Torque Hybrid Stepping Motor Specifications Model No.
