MHC3216S

High Current Ferrite Chip Bead

MHC3216S Features

* Combination of high frequency noise suppression with capabillty of handling high current, The current rating up to 6Amps with low DCR. Application field High current DC power lines, Circuits where a stable ground in unavailable. Part Number Code MHC 1608 S 12 1 A A 1234567 1. Series Name 2. Size Co

MHC3216S Datasheet (29.22 KB)

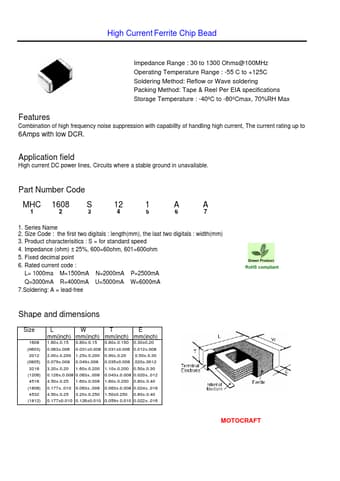

Preview of MHC3216S PDF

Datasheet Details

Part number:

MHC3216S

Manufacturer:

MOTOCRAFT

File Size:

29.22 KB

Description:

High current ferrite chip bead.
High Current Ferrite Chip Bead Impedance Range : 30 to 1300 Ohms@100MHz Operating Temperature Range : -55 C to +125C Soldering Method: Reflow or Wave.
