MA850 - 8-Bit Contactless Angle Encoder

Datasheet Summary

Description

The MA850 is an easy-to-use, magnetic, angle encoder with a digital output designed to replace analogic potentiometers or rotary switches.

The MA850 is designed for slow operation such as human-machine interface, manual controls, etc.

where the rotating speed remains below 200 rpm.

Features

  • programmable magnetic field strength thresholds, which allow for the implementation of a push or pull button function. These are output as two logic signals. On-chip non-volatile memory provides storage for configuration parameters, including the reference zero angle position and magnetic field detection threshold settings.

📥 Download Datasheet

Datasheet preview – MA850

Datasheet Details

Part number MA850
Manufacturer MPS
File Size 1.31 MB
Description 8-Bit Contactless Angle Encoder
Datasheet download datasheet MA850 Datasheet
Additional preview pages of the MA850 datasheet.

📁 Similar Datasheet

  • MA85101 - High Frequency Ceramic Capacitors (Murata Electronics)
  • MA856 - Band Switching Diodes (Panasonic)
  • MA8000 - Standby Low-Power Consumption Power Supply IC Module (ETC)
  • MA801 - 8051 - SCM (Megawin)
  • MA80101 - High Frequency Ceramic Capacitors (Murata Electronics)
  • MA802 - 8051 - SCM (Megawin)
  • MA8024 - Silicon planar type (Panasonic)
  • MA8027 - Silicon planar type (Panasonic)
  • MA80270H - Silicon planar type (Panasonic)
  • MA80270L - Silicon planar type (Panasonic)
Other Datasheets by MPS
  • MA800 - 8-Bit Contactless Angle Encoder

Full PDF Text Transcription

Click to expand full text

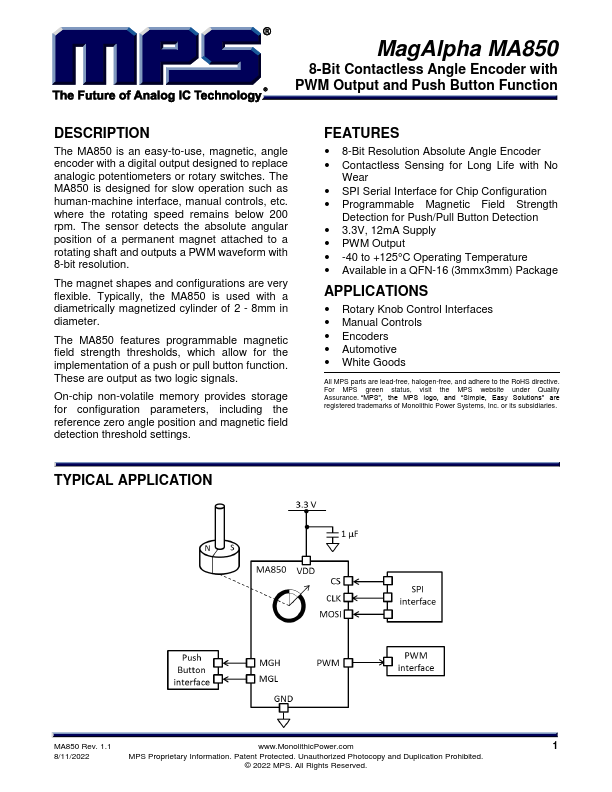

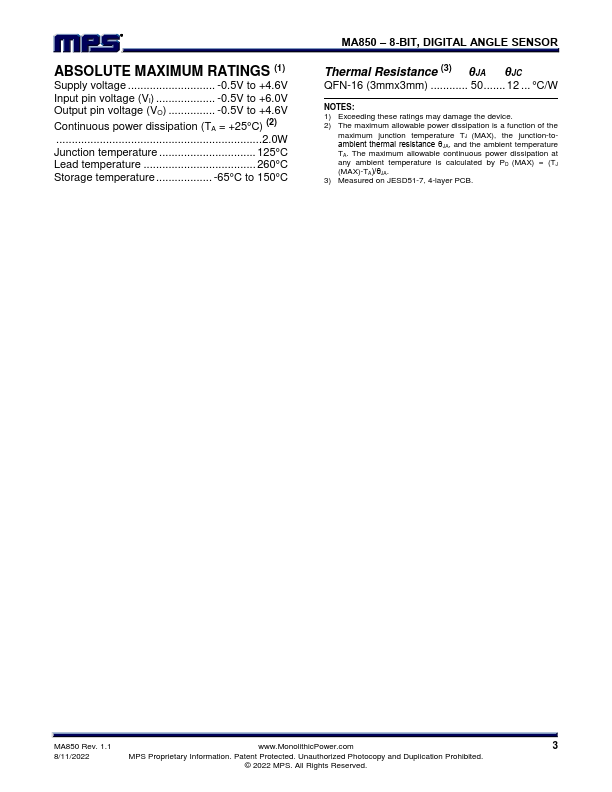

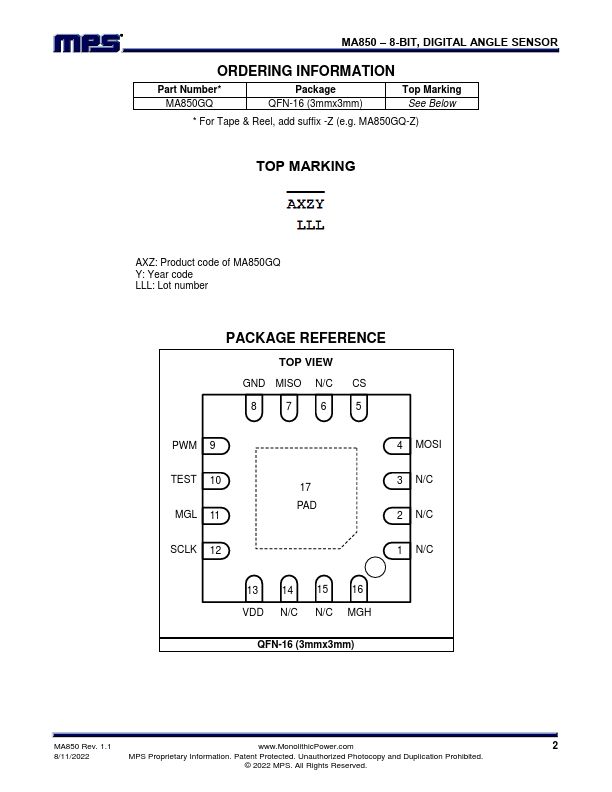

MagAlpha MA850 8-Bit Contactless Angle Encoder with PWM Output and Push Button Function DESCRIPTION The MA850 is an easy-to-use, magnetic, angle encoder with a digital output designed to replace analogic potentiometers or rotary switches. The MA850 is designed for slow operation such as human-machine interface, manual controls, etc. where the rotating speed remains below 200 rpm. The sensor detects the absolute angular position of a permanent magnet attached to a rotating shaft and outputs a PWM waveform with 8-bit resolution. The magnet shapes and configurations are very flexible. Typically, the MA850 is used with a diametrically magnetized cylinder of 2 - 8mm in diameter.
