MIE1W0505BGLVH Datasheet - MPS

MIE1W0505BGLVH 2.5kVrms Isolated DC-DC Module

The MIE1W0505BGLVH is an isolated, regulated, DC/DC module. It can support 3V to 5.5V input voltage (VIN) applications. With excellent load and line regulation, it supports up to 1W of output power (POUT). The MIE1W0505BGLVH integrates power MOSFETs, transformer, and feedback (FB) circuit all in one.

MIE1W0505BGLVH Features

* include short-circuit protection (SCP) and over-temperature protection (OTP). The MIE1W0505BGLVH is available in a small LGA-12 (4mmx5mm) package. TYPICAL APPLICATION U1 4.5V-5.5V VIN VIN On/off EN C1 10uF GND1 GND1 VOUT VSEL GND2 5V VOUT C2 22uF GND2 MIE1W0505BGLVH 5V, 1W, Regulated, 2.

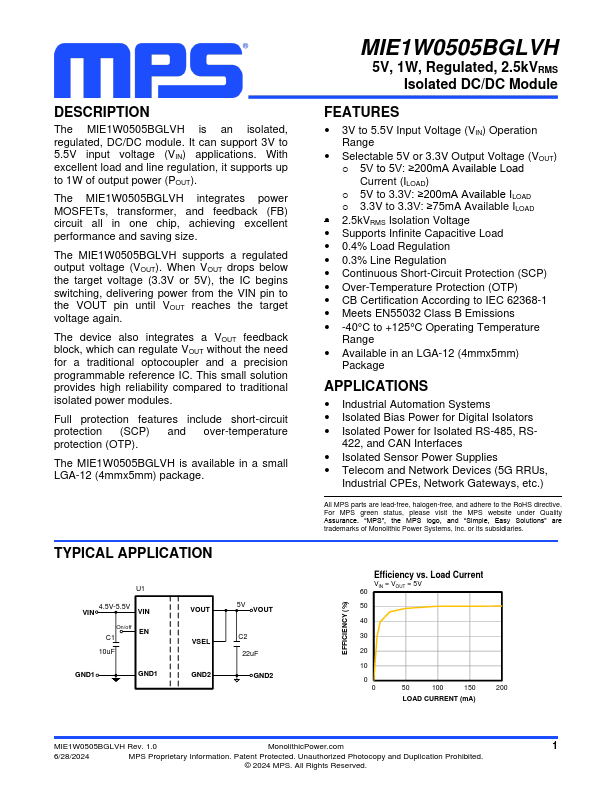

MIE1W0505BGLVH Datasheet (607.98 KB)

MIE1W0505BGLVH Datasheet Preview — Preview of MIE1W0505BGLVH PDF

Datasheet Details

Part number:

MIE1W0505BGLVH

Manufacturer:

MPS

File Size:

607.98 KB

Description:

2.5kvrms isolated dc-dc module.
