MP1531 - Triple Output Step-Up Plus Charge Pump

MP1531 Description

The Future of Analog IC Technology MP1531 Low Power, Triple Output Step-Up Plus Charge Pump for TFT Bias .
The MP1531 is a triple output step-up converter with charge-pumps to make a complete DC/DC converter to power a TFT LCD panel from a 2.

MP1531 Features

* 2.7V to 5.5V Operating Input Range
* 500mA Switch Current Limit
* 3 Outputs in a Single Package
* Step-Up Converter up to 22V
* Positive 10mA Linear Regulator
* Negative 10mA Linear Regulator
* 250mΩ Internal Power MOSFET Switch
* 95% Efficiency
* 1μA Shutdown M

MP1531 Applications

* TFT LCD Displays
* Portable DVD Players
* Tablet PCs
* Car Navigation Displays For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. EFFICIENCY (%) Efficie

📥 Download Datasheet

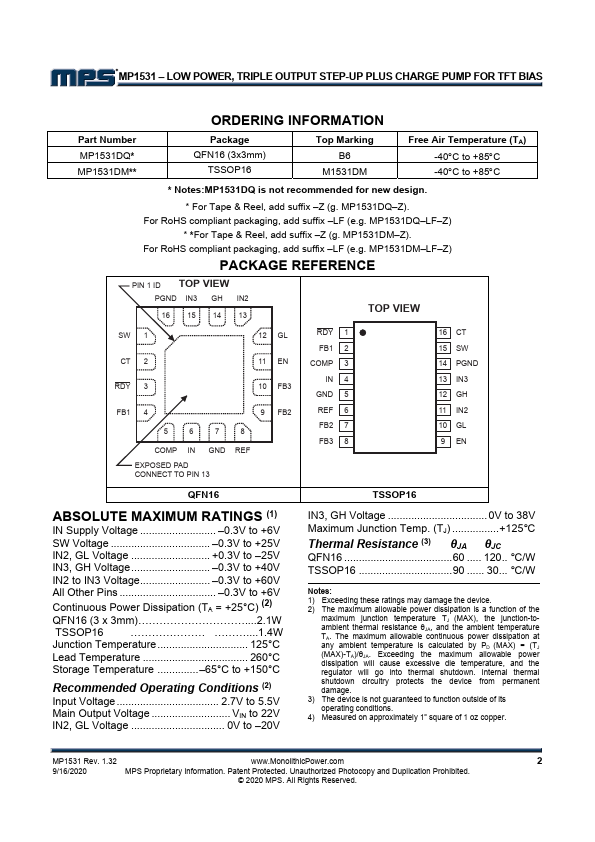

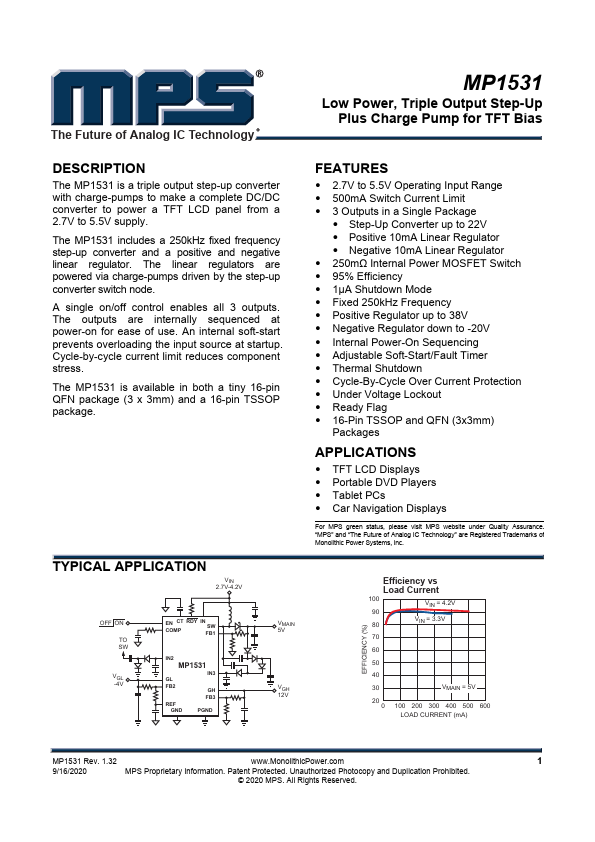

Preview of MP1531 PDF

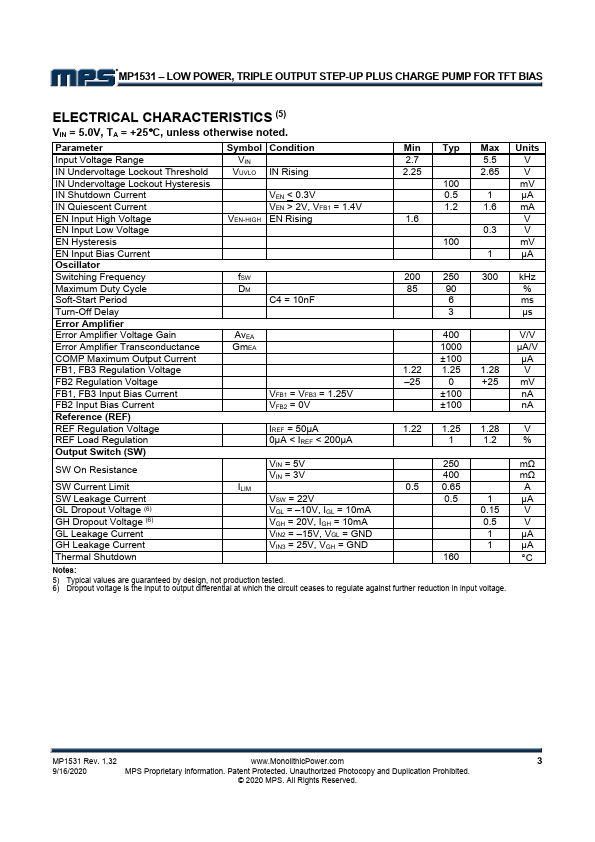

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP1531
Manufacturer
MPS
File Size
341.50 KB
Datasheet
MP1531-MPS.pdf
Description
Triple Output Step-Up Plus Charge Pump
