MP2002DD

Low Input Voltage 500mA Linear Regulator

MP2002DD Features

* thermal overload and current limit protection. It is available in an 8-pin QFN (2 x 3mm) package MP2002 Low Input Voltage 500mA Linear Regulator NOT RECOMMENDED FOR NEW DESIGNS FEATURES

* Power Good Open Collector Output

* Operates from 1.35V

* 6.5V Input

* Low 300mV Dropout at

MP2002DD General Description

The MP2002 is a low-current, low-dropout linear regulator operating over a single input supply between 1.35V to 6.5V. The output voltage of the MP2002 is adjustable via an external resistor divider. The MP2002 can supply up to 500mA of load current. The enable pin (EN) allows the part to be put into.

MP2002DD Datasheet (837.48 KB)

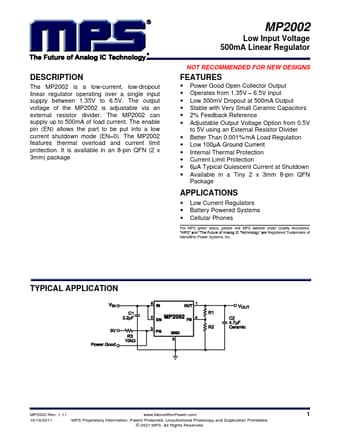

Preview of MP2002DD PDF

Datasheet Details

Part number:

MP2002DD

Manufacturer:

MPS

File Size:

837.48 KB

Description:

Low input voltage 500ma linear regulator.
