MP2151 Datasheet - MPS

Synchronous Step-Down Converter

MP2151 Features

* include cycle-by-cycle current limiting and thermal shutdown. The MP2151 is ideal for a wide range of applications including high-performance DSPs, wireless power, portable and mobile devices, and other low-power systems. The MP2151 requires a minimal number of readily available, standard, external

MP2151 General Description

The MP2151 is a monolithic, step-down, switchmode converter with built-in, internal power MOSFETs. The MP2151 achieves 1A of continuous output current from a 2.5V to 5.5V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V. The constant-on-time (.

MP2151 Datasheet (1.31 MB)

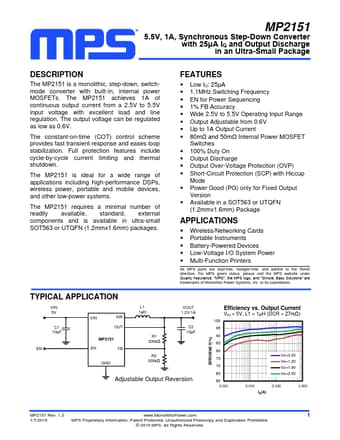

Preview of MP2151 PDF

Datasheet Details

Part number:

MP2151

Manufacturer:

MPS

File Size:

1.31 MB

Description:

Synchronous step-down converter.
